Overview of the program sections

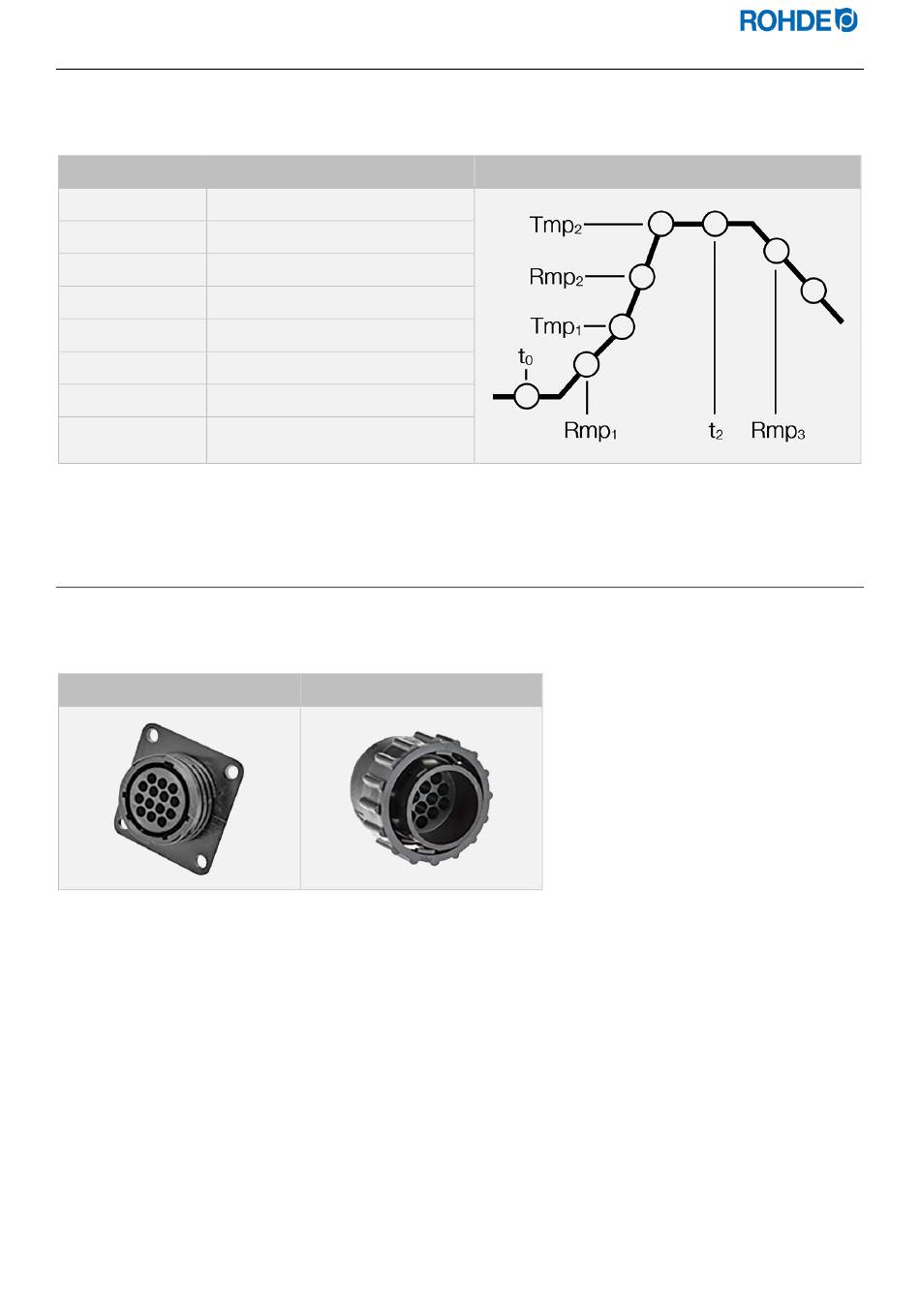

You will find a schematic firing curve on the front of the controller. It comprises different program sections. A flashing
LED indicator shows the program section you have entered.
Section Description
t Program delay
0
Rmp 1st heating rate
1
Tmp 1st switch point
1
Rmp 2nd heating rate
2
Tmp End temperature
2
t Soak time at end temperature
2
Rmp Cooling rate
3
Last indicator
Indicates the end of the program
light
2.5.

Connector features

The control unit is connected to the kiln via a 14-pin connector. The black 14-pin socket provided for this is located
on the switch cabinet of the kiln (near the electrical supply line).
CPC 14 kiln socket CPC 14 controller plug
