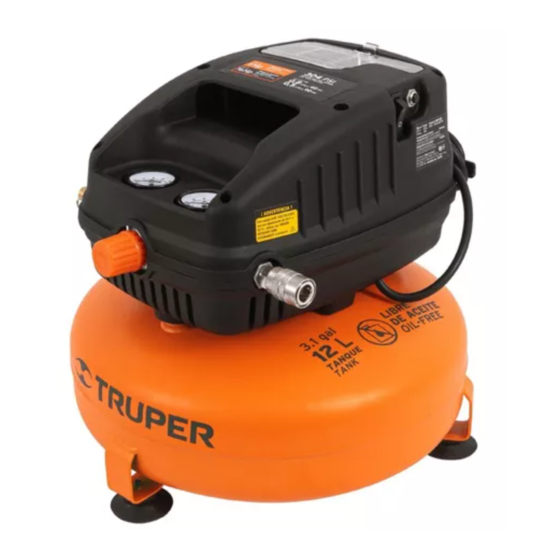

- Página 1 Manual Oil - Free 100 PSI Air Compressor Pressure Applies for: Code Model 13824 COMP-12S COMP-12S Read the user’s manual thoroughly CAUTION before operating this tool.
-
Página 2: Tabla De Contenido
Contents CAUTION Technical Data Power Requirements To gain the best performance of the tool, prolong the duty life, General Power Tool Safety Warnings make the Warranty valid if necessary, and to avoid hazards Safety Warnings for Using of fatal injuries please read and Air Compressors understand this Manual before using the tool. -
Página 3: Technical Data
Technical Data COMP-12S Code 13824 Description Oil-free air compressor Voltage Frequency 127 V 60 Hz Current Motor Power 1.7 A 1/3 Hp Measurements Weight 13.7” x 13.1” 17.6 lb Air Connections 1/4” fast coupling Maximum Pressure 100 PSI 0.8 CFM - 40 PSI Air Flow 0.5 CFM - 90 PSI... -
Página 4: General Power Tool Safety Warnings
General Power Tools Safety Warnings WARNING! Read carefully all safety warnings and instructions listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references. -
Página 5: Safety Warnings For Using Air Compressors
Safety Warnings for Using Air Compressors Before using the compressor While operating the compressor CAUTION CAUTION • The equipment, when operated, may be • Do not aim the nozzles, sprinklers or the an ignition source. Keep the equipment away at least 18 ft air jet towards people or animals. -
Página 6: Parts
Parts • The air compressor is useful to supply energy for pneumatic tools, as versatile as power tools. It can be used for drilling, screwing, hammering, riveting, Safety stapling, chiseling, polishing, blasting, cleaning, valve painting, etc. Accessories cabinet Pressure outlet regulator Pressure Pressure... -
Página 7: Start Up
Start Up Turning ON and operation CAUTION • Before operating the compressor, set it in a flat, level and solid surface, good ventilation and away of flammable object, for example, curtains or drapes. Leave 12” free space around the compressor to allow air to circulate. •... -
Página 8: Maintenance
Maintenance Cleaning and care • Disconnect the equipment from the power supply and release all the pressure from the system before trying to install, servicing, relocate or carry out maintenance. • Always have the vents clean and free of obstructions to guarantee an adequate motor cooling. -
Página 9: Troubleshooting
Troubleshooting Problem Cause Solution The motor is not • There is no power. • Make sure the power cable is connected. Check the fuse – circuit working. breaker. • Blown fuse. • Replace the blown fuse of instalation. • Thermal switch activated. •... -
Página 10: Notes
Notes ENGLISH... -
Página 11: Authorized Service Centers
Authorized Service Centers In the event of any problem contacting a Truper Authorized Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 800 690-6990 or 800 018-7873 to get information about the nearest Service Center. -
Página 12: Warranty Policy
It includes the costs of transportation of the product that derive from its fulfillment of its service network. . Phone number 800-018-7873. Made in China. Imported by Truper, S.A. de C.V. Parque Industrial 1, Parque Industrial Jilotepec, Jilotepec, Edo. de Méx. C.P. 54257, Phone number 761 782 9100.
