Style selections LWSSRK 5120852 Instrucciones De Montaje

STYLE SELECTIONS is a trademark or registered
trademark of LF, LLC. All rights reserved.

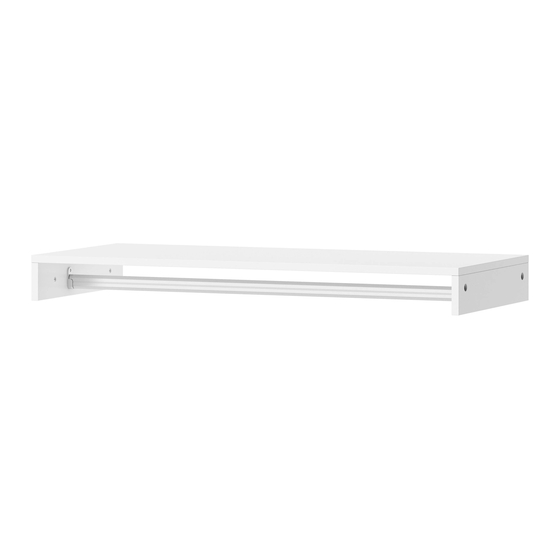

SHELF AND ROD CONNECTOR
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
Call customer service at 1-877-888-8225,8 a.m. - 8 p.m., EST, Monday - Sunday.
ITEM #5120852
MODEL #LWSSRK
Français p. 9
Español p. 17
1
PACKAGE CONTENTS
C
PART DESCRIPTION QUANTITY
A Long shelf 1
B Hanging pole 1
C Stringer left 1
D Stringer right 1
CAM LOCK SYSTEM OPERATION
1
1. Screw the Cam Bolt into the pre-drilled small holes on the panel. Connect both panels together;
making sure the Cam Bolt goes into the pre-drilled hole at the end of the panel with the Cam
Lock.
2. Insert the Cam Lock into the pre-drilled large hole in the panel. Make sure the arrow on the
Cam Lock is pointed towards the Cam Bolt.
3. Once the Cam Bolt is connected inside the Cam Lock, take a Phillips screwdriver (not included)
and tighten the Cam Lock clockwise.
A
D
B
2 3
2
