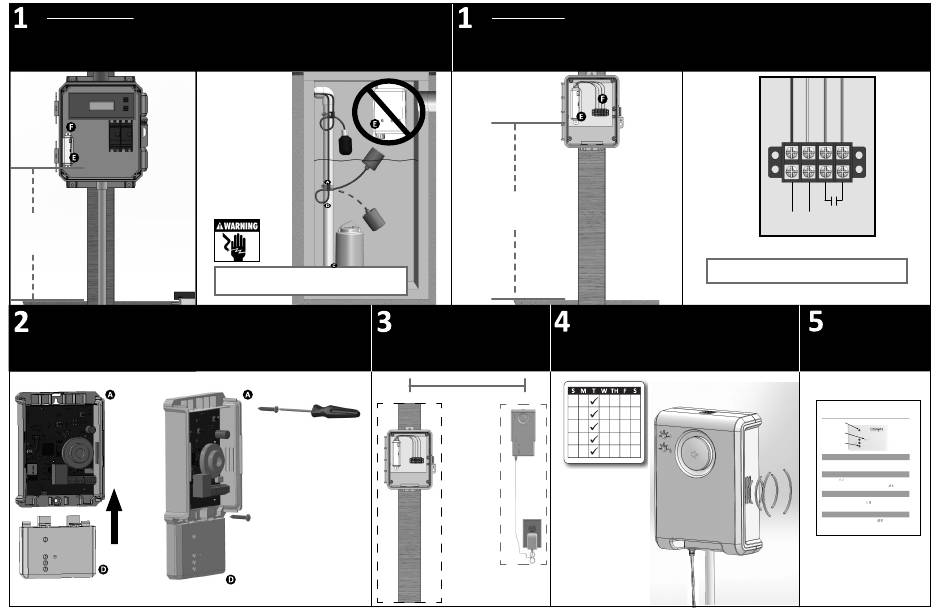

Panel Installation
a
Install the panel module securely in a 4X rated enclosure.
min.
3 ft.
Remove CSION® alarm cover. Insert alarm module into the USB port.
Mount alarm (indoor only) using keyhole on the back of the unit.
DO NOT INSTALL PANEL MODULE IN TANK.
Replace cover and connect
USB power cable.
Refer to CSION® alarm
instructions for fl oat switch
installation, battery back up,
and operation.
4X Installation
b
Securely mount 4X enclosure.
Refer to schematic for wiring panel module.
min.
3 ft.
Test alarm weekly to insure
proper operation.
Max
1 2 3 4 5 6
200ft.
7 8 9 10 11 12 13
14 15 16 17 18 19 20
21 22 23 24 25 26 27
28 29 30 31
BLACK
WHITE
ORANGE
WHITE/RED
Dry Contact
L
N
120VAC
Warning: only connect to dry contact closure.
Refer to operation
guide for start up.
CSION
RF Alarm
®
Operation Guide
Alarm LED
Pairing Button
Signal Strength
Step 1: Installation
Mount and wire the alarm according to the installation instructions.
***Maximum distance between modules should be 200ft.
Step 2: Signal Strength Check
Press pairing button
for 1 second on the panel module to enter setup mode for fast signal strength
updates.
Reposition the indoor module until 1 or more signal LEDs are illuminated green.
Step 3: Test Alarm
Verify the alarm is functioning by triggering an alarm condition on the outdoor panel and verify the indoor
CSION® alarm is alarming. Alarm LED on CSION® RF
and CSION® alarms will illuminate amber in
color when alarming and the audible alarm will sound. For CSION® WiFi alarm units, verify a text or email
notifi cation of alarm was received.
Monthly Testing
Verify at least 1 or more signal LEDs are illuminated green monthly
,
,
,
,
,
,
, and repeat step 3 as you are
,
, ,
,
,
,
able.
