Montaje
14

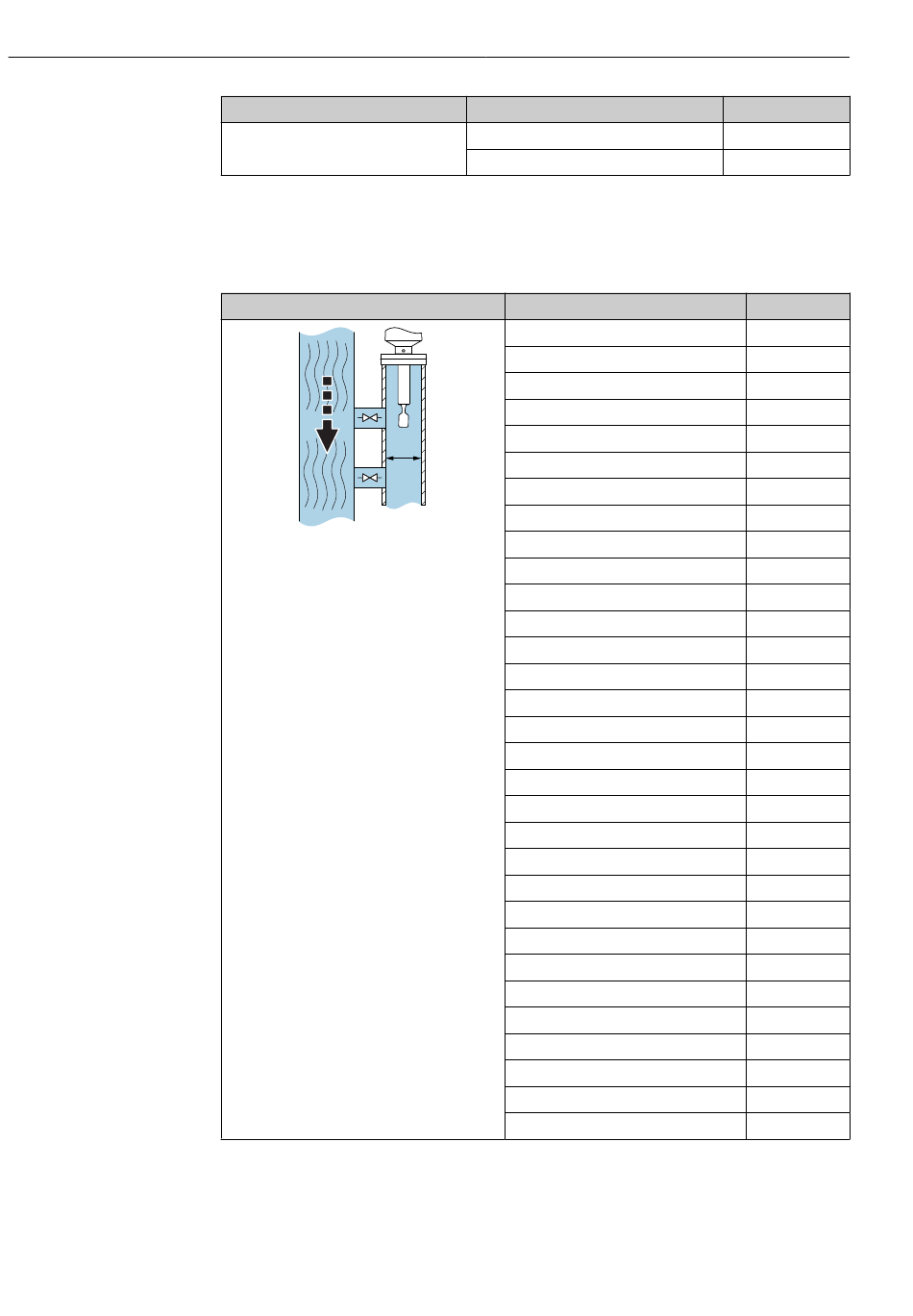

Instalación en un bypass
Factor de corrección "r" como factor del diámetro interno del bypass "D", para introducir en
el calculador de densidad FML621 o ReadWin2000:
h
38 mm (1,50 in)
40 mm (1,57 in)
D
<44 mm (1,73 in)
44 mm (1,73 in)
46 mm (1,81 in)
48 mm (1,89 in)
50 mm (1,97 in)
D
52 mm (2,05 in)
54 mm (2,13 in)
56 mm (2,20 in)
A0039689
58 mm (2,28 in)
60 mm (2,36 in)
62 mm (2,44 in)
64 mm (2,52 in)
66 mm (2,60 in)
68 mm (2,68 in)
70 mm (2,76 in)
72 mm (2,83 in)
74 mm (2,91 in)
76 mm (2,99 in)
78 mm (3,07 in)
80 mm (3,15 in)
82 mm (3,23 in)
84 mm (3,31 in)
86 mm (3,39 in)
88 mm (3,46 in)
90 mm (3,54 in)
92 mm (3,62 in)
94 mm (3,70 in)
96 mm (3,78 in)
98 mm (3,86 in)
100 mm (3,94 in)
>100 mm (3,94 in)
Liquiphant FTL62 Density
r
1,0001
1,0000
r
-
1,0191
1,0162
1,0137
1,0116
1,0098
1,0083
1,0070
1,0059
1,0050
1,0042
1,0035
1,0030
1,0025
1,0021
1,0017
1,0014
1,0012
1,0010
1,0008
1,0006
1,0005
1,0004
1,0003
1,0003
1,0002
1,0002
1,0001
1,0001
1,0001
1,0000
