A BO V E CO UNT ER D I V E R T ER
I N S TA LL AT I O N (1 0 -0 1 88 - CA )
The eSpring Water Purifier sits on the countertop with the Diverter and tubing
®
attached directly to your faucet. It does not work with pull out sprayer faucets.
The tubing should be replaced every two years.
NOTE: Attach the Diverter to a
faucet that will supply COLD,
POTABLE WATER to the Water
Purifier. DO NOT RUN HOT WATER
THROUGH THE WATER PURIFIER.

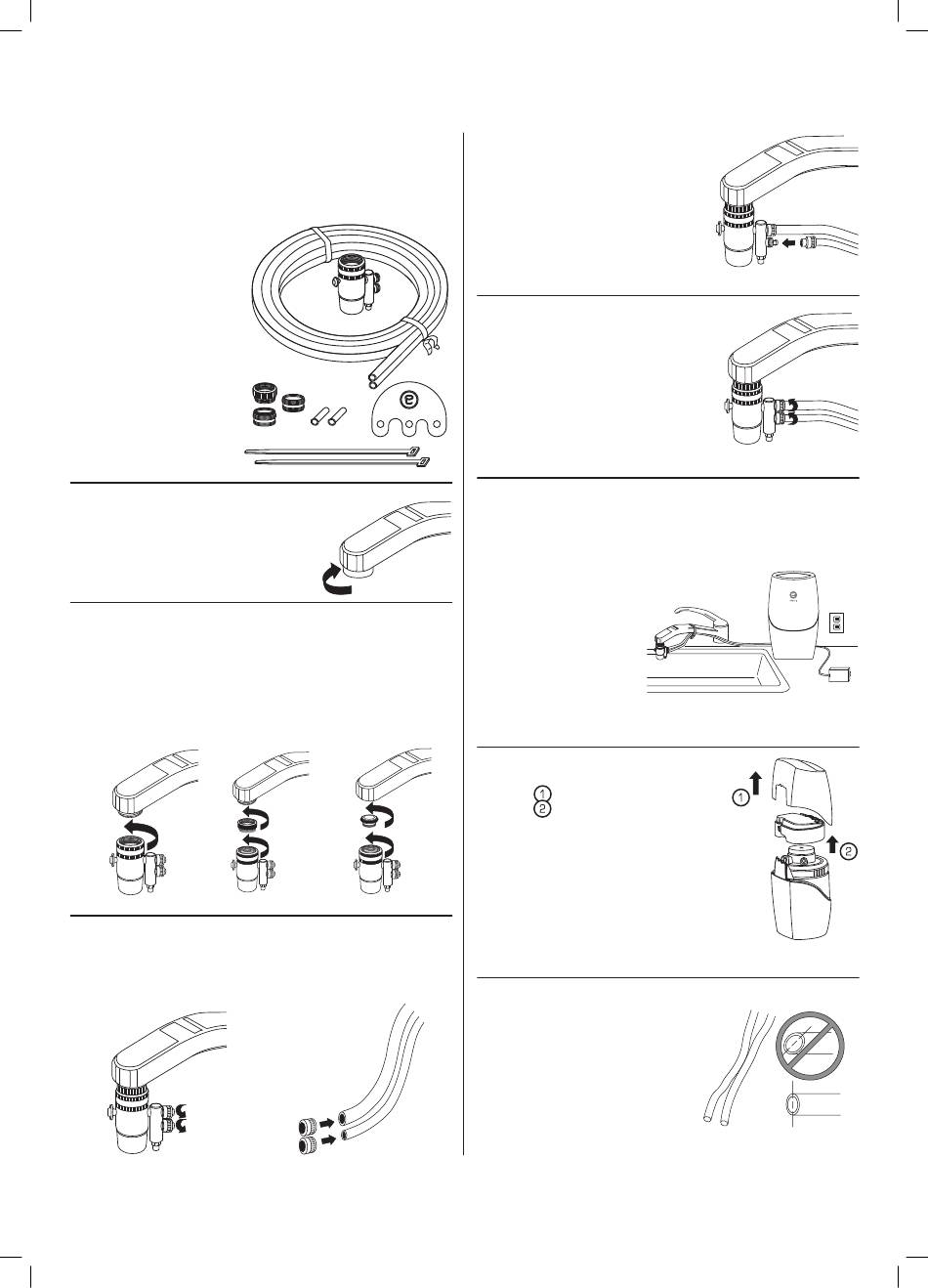

Check to make sure you have all
the correct components before
beginning installation (Fig 1).
a. Diverter
b. Tubing
c. 3 Faucet Adapters
d. 2 Tubing Supports
e. 2 Tie Straps
f. Tubing Removal Tool
ATTAC HI NG THE D I V ER T E R
1. Unscrew to remove the aerator (wire
screen) and washer from the end of your
faucet (Fig. 2).
2. There are three options for attaching the Diverter to the faucet.
a) Position the Diverter onto the faucet and hand tighten the textured collar
counterclockwise until secure (Fig. 3).
b) If that does not fit, attach the appropriate textured adapter with internal
threads and washer to the end of your faucet (Fig. 4).
c) If the threads on your faucet are internal, attach the appropriate adapter
with external threads to the end of your faucet (Fig. 5).
Fig. 3
ATTAC HI NG THE T U B I N G T O T H E D I V E R T E R
1. Unscrew to remove the textured nuts (Fig. 6).
2. With the threads facing out, push the large nut onto the large tube and the
small nut onto the small tube (Fig. 7).
Fig. 6
2
a
b
c
d
Fig. 2
Fig. 4 Fig. 5
Fig. 7
3. Firmly push the large tube onto the large
barb and the small tube onto the small barb
(Fig. 8).
Fig. 1
4. Screw the nuts onto the barbs and hand
tighten (Fig. 9). Use the tie straps to secure
the tubing to the faucet.
f
e
AT TACHING T UBING T O WATE R PURIFIE R
A ND CHE CKING FOR LE A KS
**MAKE SURE THE UNIT IS NOT PLUGGED INTO AN ELECTRICAL OUTLET.
1. Position the eSpring Water
Purifier in a desired location
where the tubing from the
faucet reaches the Water
Purifier and the Power
Adapter reaches an outlet
with continuous power
(Fig. 10).
2. Remove the Top Shroud from the Water
Purifier . Remove the Electronic
Module (Fig. 11).
3. If the tubing is too long, use a sharp knife
to cut the tubes to the same length where
they are NOT BONDED TOGETHER.
Make sure the cut is straight to form a
flat end on the tubes (Fig. 12).
Fig. 8
Fig. 9
Fig. 10
Fig. 11
Fig. 12
