The Techconnect Control has now assigned that code to the button and is no longer in learn
mode. Repeat all steps including step (a) to program the other buttons. Note: If you are
programming one of the middle buttons in dual command mode it will remain in learn mode
after you have taught it the first code. You should now press the second command on the
original remote control. The second code will be assigned to the same middle button and the
module will revert out of learn mode.

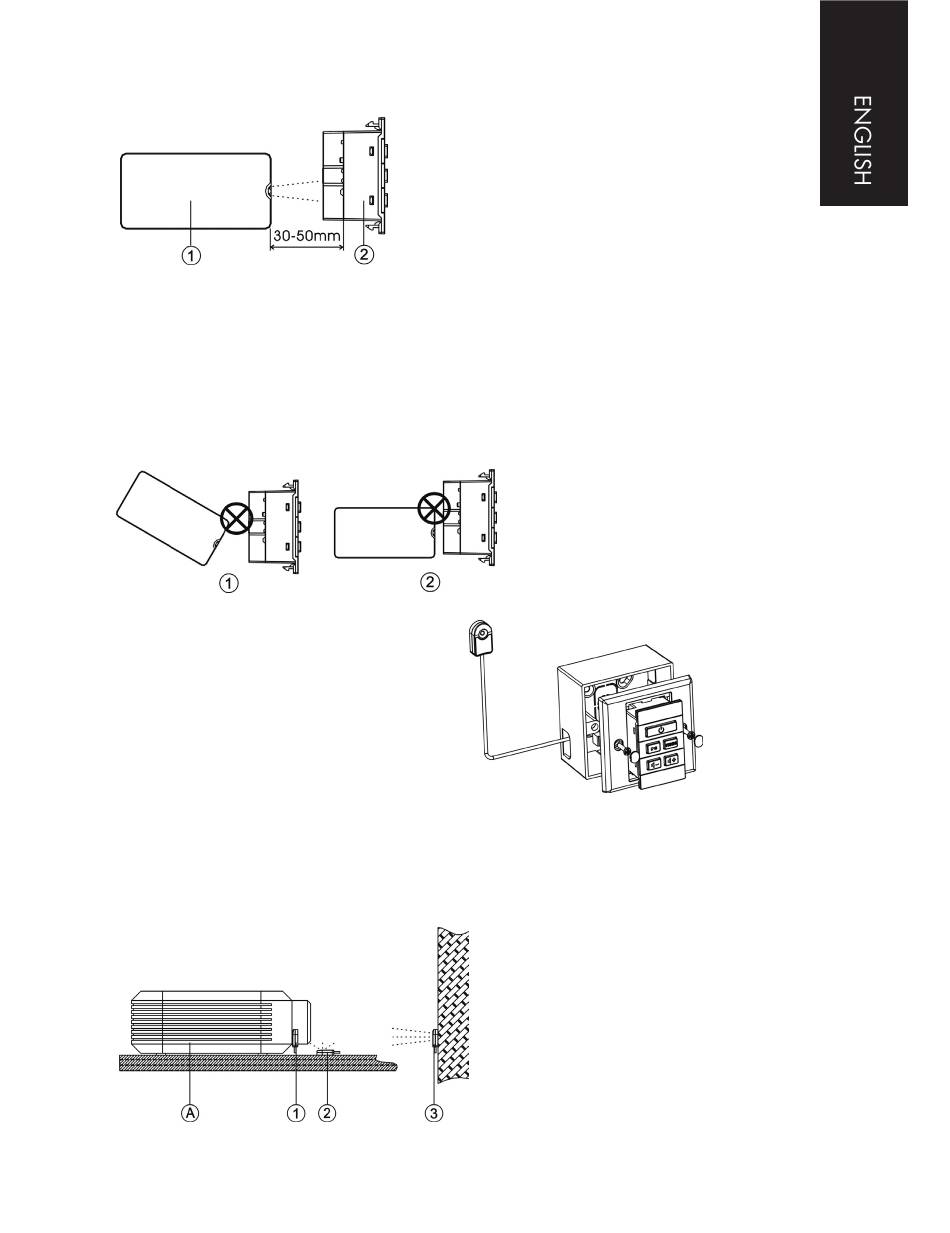

Keep the remote control 90 degrees to the receiver as shown above. The optimum learning
distance is 30-50mm.
5. INSTALL CONTROL MODULE INTO
TECHCONNECT FACEPLATE After you've
taught the Control Module the IR codes,
install the module into the Techconnect
faceplate, plug in the IR Blaster cable
(included) and route it to the projector.
6. ATTACH THE IR BLASTER TO THE PROJECTOR A powerful IR emitter is included with the
Techconnect Control, attached to a 10m cable. This cable can be shortened or lengthened
easily at the Phoenix connector end which plugs into the Control Module. The IR emitter should
be positioned over or near the IR receiver on the projector as shown below. Option (1) is most
effective as the IR signal can be weakened by direct sunlight or fluorescent lights.
All manuals and user guides at all-guides.com
1. Original Remote Control
2. IR Input receiver
1. Incorrect angle
2. Too close
A. Projector
1. Stuck on the IR receiver built in to
the projector
2. Sitting near the IR receiver
3. Attached to a wall directly facing
the IR receiver
