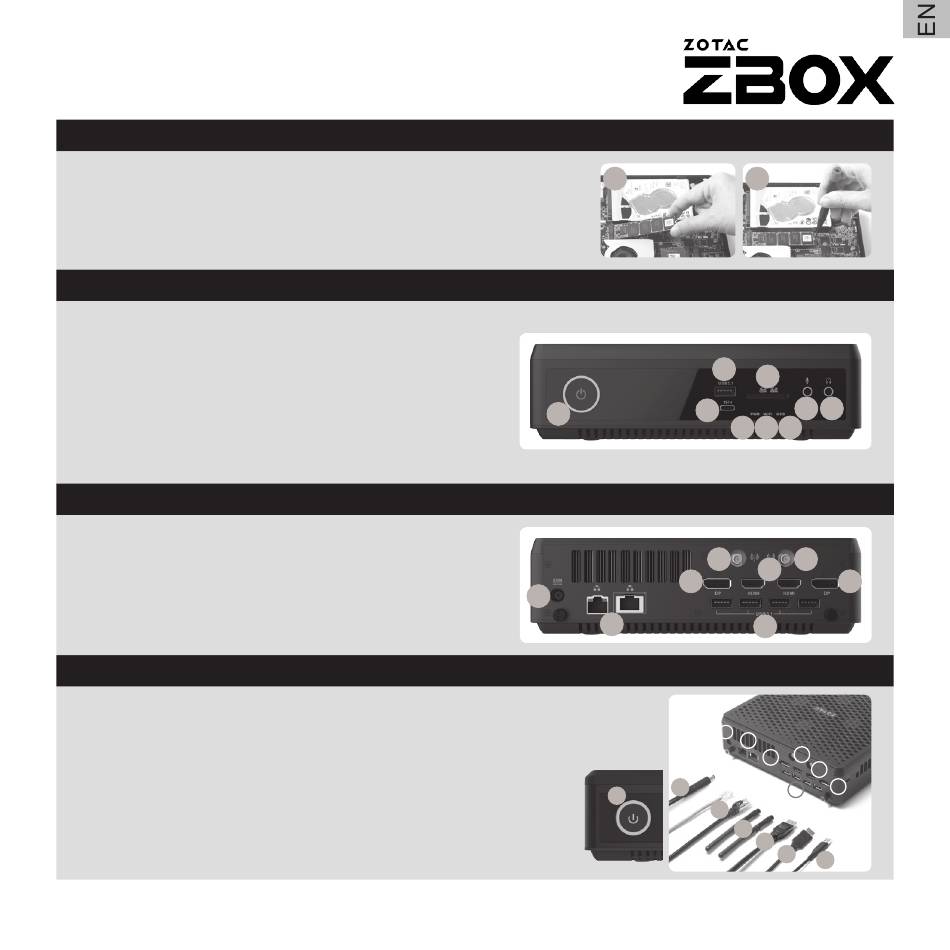

I N S TA L L I N G M . 2 S S D M O D U L E
1. Locate the M.2 SSD slot and insert an M.2 SSD
module into the slot at a 45 degree angle.
2. Gently press down on the M.2 SSD module, and
install the screw.
F R O N T PA N E L
1. Power button
2. USB 3.1 port
3. Thunderbolt 4 port
4. Memory card reader (SD/SDHC/SDXC)
5. Power LED
6. WiFi LED
7. Hard drive LED
8. Microphone jack
9. Headphone/Audio Out jack
R E A R PA N E L
1. Power input (DC19.5V)
2. LAN (RJ45) ports
3. WiFi antenna connectors
4. DP ports
5. HDMI ports
6. USB 3.1 ports
S E T T I N G U P YO U R ZOTAC Z B OX
1. Connect to home networks
2. Connect antennas for WiFi
3. Connect DP display
4. Connect HDMI displays
5. Connect USB 3.1 devices
6. Connect power cable
7. Turn on the system
