How to Assemble Your Ceiling Fan (Close to Ceiling)

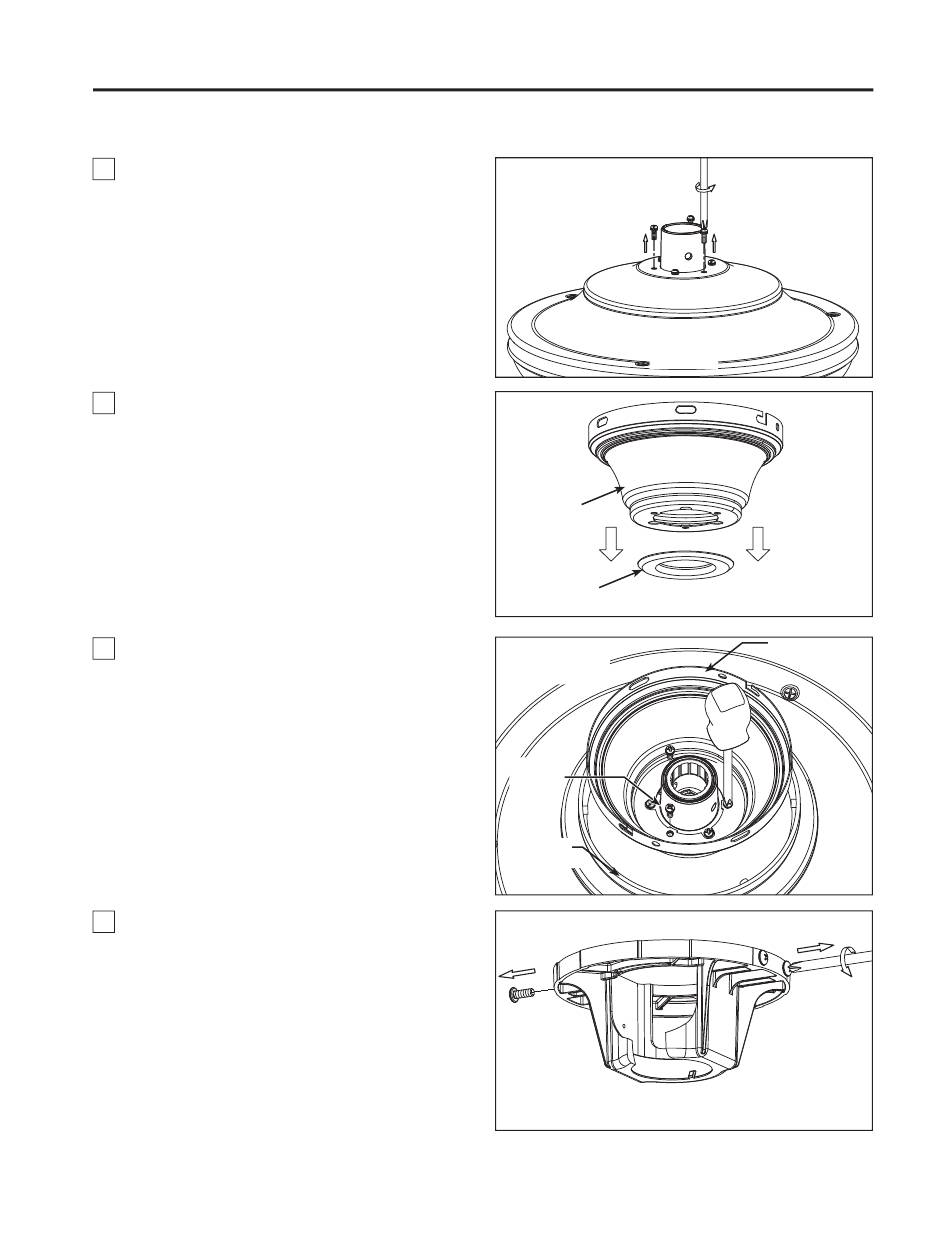

1. Alternating positions, remove three motor coupling
screws from motor assembly and retain the screws
for Step 3. (Figure 1)
2. Remove the screw cover from the ceiling canopy.
(Figure 2)
Route your fan wires through the ceiling canopy.
3.
Align the three big slots in the canopy to the
three screws in the motor coupler. Firmly attach
the canopy cover to the motor with the previously
removed screws. (Figure 3)
4. Completely remove one of each right-hand screw
on either side of the flap of the hanger bracket and
retain the screws for later. Loosen the remaining
screws without fully removing it. (Figure 4)
All manuals and user guides at all-guides.com
9
NOTE: MOTOR WIRES
HAVE BEEN OMITTED
FROM DIAGRAM
Figure 1
Ceiling Canopy
Screw Cover
Figure 2
NOTE: MOTOR WIRES
HAVE BEEN OMITTED
FROM DIAGRAM
Moter
Assembly
Canopy Trim
Ring Assembly
Figure 3
Figure 4
Canopy
