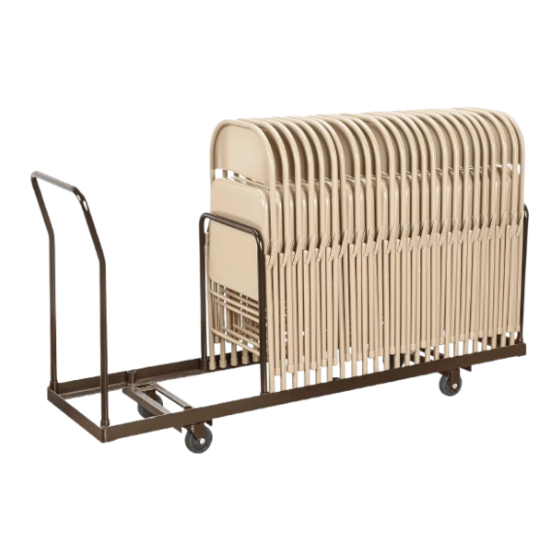

Carrito para sillas plegables capacidad -para 35 sillas
Idiomas disponibles

Idiomas disponibles

Enlaces rápidos

H-2523
FOLDING CHAIR
DOLLY – 35 CHAIR
CAPACITY
Dolly Frame x 1
1.
Remove three handles from carton.
2. Insert curved handle (B) into sockets at end of dolly
frame (A) that has swivel casters. (See Figure 1)
3. Insert one straight handle (C) into sockets at other
end of dolly frame (A). (See Figure 1)
Figure 1
PAGE 1 OF 6
1-800-295-5510
uline.com
PARTS
ASSEMBLY
4. Load desired amount of chairs onto dolly and place
B
C
A
Pour le français, consulter la page 5.
Curved Handle x 1
second straight handle (C) into pre-set sockets that
best fit the amount of chairs that have been loaded.
These sockets are located at set intervals on the
dolly frame (A). (See Figure 1)
NOTE: See page 2 for how to stack chairs.
C
Para Español, vea página 3.
Straight Handle x 2
0721 IH-2523
loading

Resumen de contenidos para Uline H-2523

  • Página 3: Ensamble

    H-2523 800-295-5510 uline.mx CARRITO PARA SILLAS PLEGABLES – CAPACIDAD PARA 35 SILLAS PARTES 1 Armazón del Carrito 1 Asa Curva 2 Asas Rectas ENSAMBLE Retire las tres asas de la caja. 4. Cargue la cantidad deseada de sillas en el carrito y coloque la segunda asa recta (C) en los conectores 2.
  • Página 4 Estibe en el extremo derecho de la plataforma con ruedas si va a mover menos de 18 sillas si va a mover menos de 18 sillas Central Recta Diagrama 2 Diagrama 3 800-295-5510 uline.mx PAGE 4 OF 6 0721 IH-2523...
