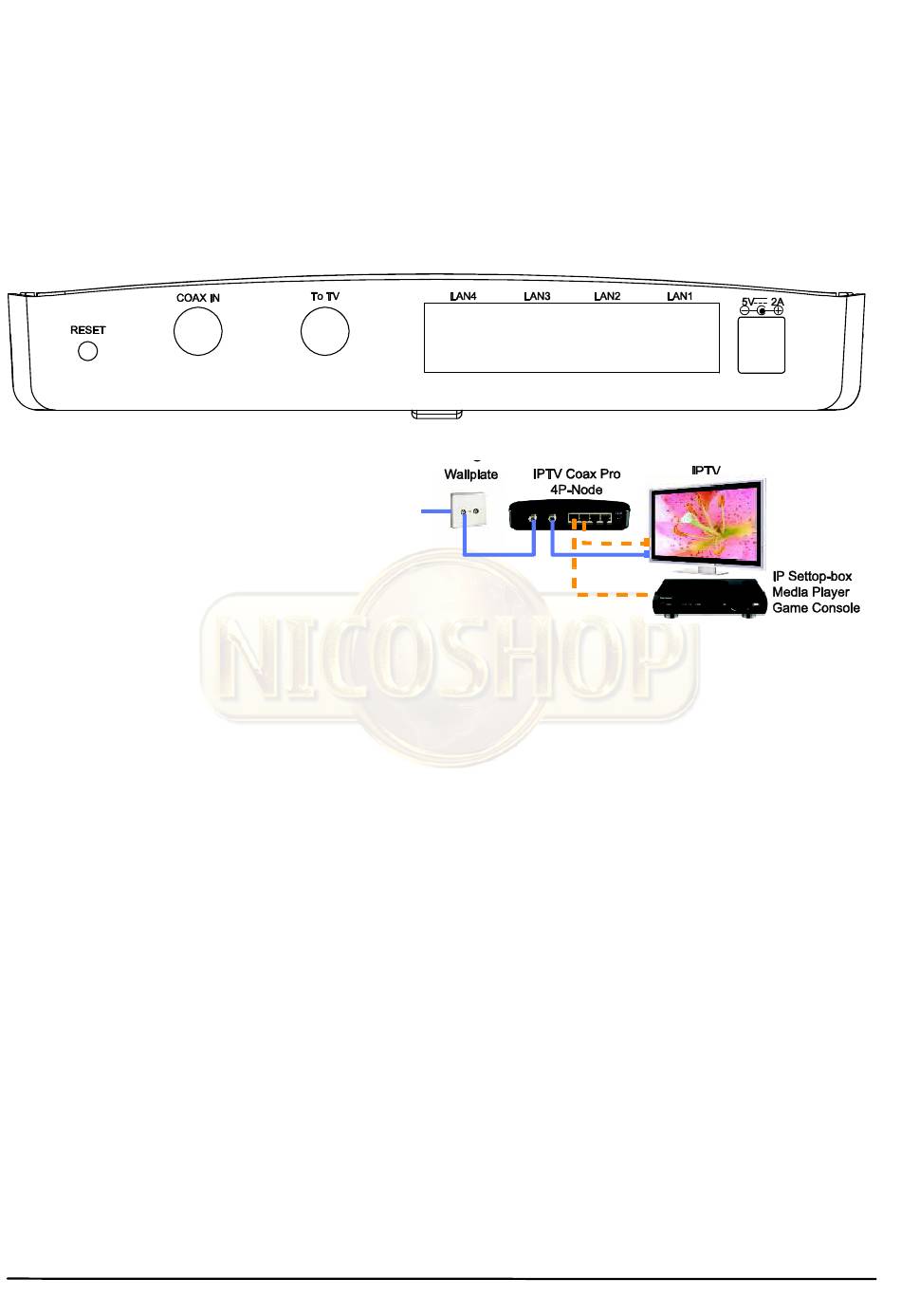

4.4 Connecting the 4P-node (living room)
Now create a network connection (IP/internet) on your existing coaxial
network in a room that has a coaxial connection. This may be a wall outlet,
splitter, or the end of a coaxial cable.
1. Disconnect your TV's (or
other device's) coaxial cable
from the
connection.
2. Connect a coaxial cable (not
included)
connector to the now vacant socket and connect it to the 4P-node's
COAX IN.
3. Now attach the F-connector to IEC adapter (supplied) to the 4P-node's
To TV to reconnect the previously disconnected cable to your TV (or
other device).
4. Connect a CAT5 network cable (included) to your device (IP set-top
box, SMART TV, Media Player, etc.) and the other to one of the four
LAN ports of the 4P-node. The built-in 4-port switch requires no further
configuration.
5. Then connect the power cable to the 4P-node and plug the adapter into
the wall outlet.
TIP: After installation, use a spanner to check if the F-connectors are
sufficiently tightened until finger tight.
