Uline H-8822 Instrucciones De Instalación

H-8822, H-8823
H-8824

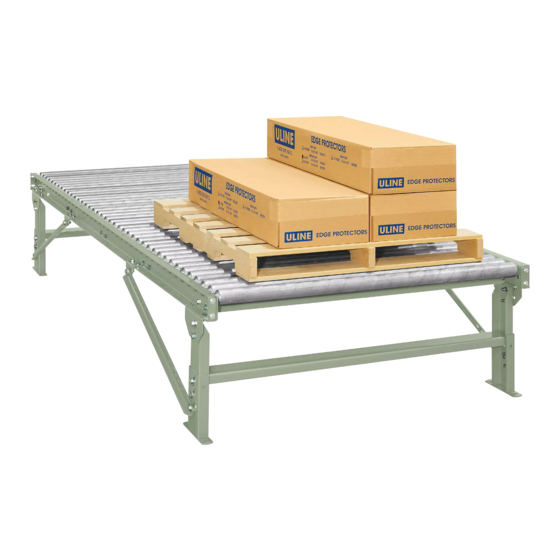

EXTRA-WIDE GRAVITY
ROLLER CONVEYORS –
2.5" DIAMETER ROLLERS
TOOLS NEEDED
9/16" (14 mm) Wrench
BOLTING CONVEYOR
FRAME(S) TO H-STAND LEG
SUPPORTS
NOTE: H-Stands are sold
separately. Hardware
included: 4 hex head
bolts, 4 flange nuts.
1. Hardware is pre-screwed
into the tops of the H-Stands.
Remove the hardware using a
9/16" (14 mm) wrench.
(See Figure 1)
2. Bolting two H-Stands to one
conveyor frame: Position
H-Stands on the end of
the conveyor frame, lining
up with two holes on the
end. Fasten bolts through
conveyor and H-Stand.
(See Figure 2)
Bolting a single H-Stand
to two conveyor frames:
Position the H-Stand
halfway between the end
of two conveyor frames,
lining up one hole on
each conveyor with the
H-Stand. Fasten bolts
through conveyors and
H-Stand. (See Figure 3)
NOTE: Each conveyor
frame includes
mounting holes for
an optional center
leg support. Adding
a third support
increases weight
capacity.
PAGE 1 OF 6
1-800-295-5510
uline.com
3/4" (19 mm) Wrench
ASSEMBLY INSTRUCTIONS
BOLTING MULTIPLE CONVEYOR FRAMES TOGETHER
Figure 1
1. Hardware is pre-screwed into the ends of the
conveyor frame. Remove the hardware using a 9/16"
(14 mm) wrench. (See Figure 4)
Figure 2
2. Fasten the bolts through the ends of both conveyor
frames, using the same holes that they arrived in.
(See Figure 5)
Figure 3
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
NOTE: Hardware included: 4 hex head bolts, 4
flange nuts and 4 washers.
Figure 4
Figure 5
0621 IH-8822
