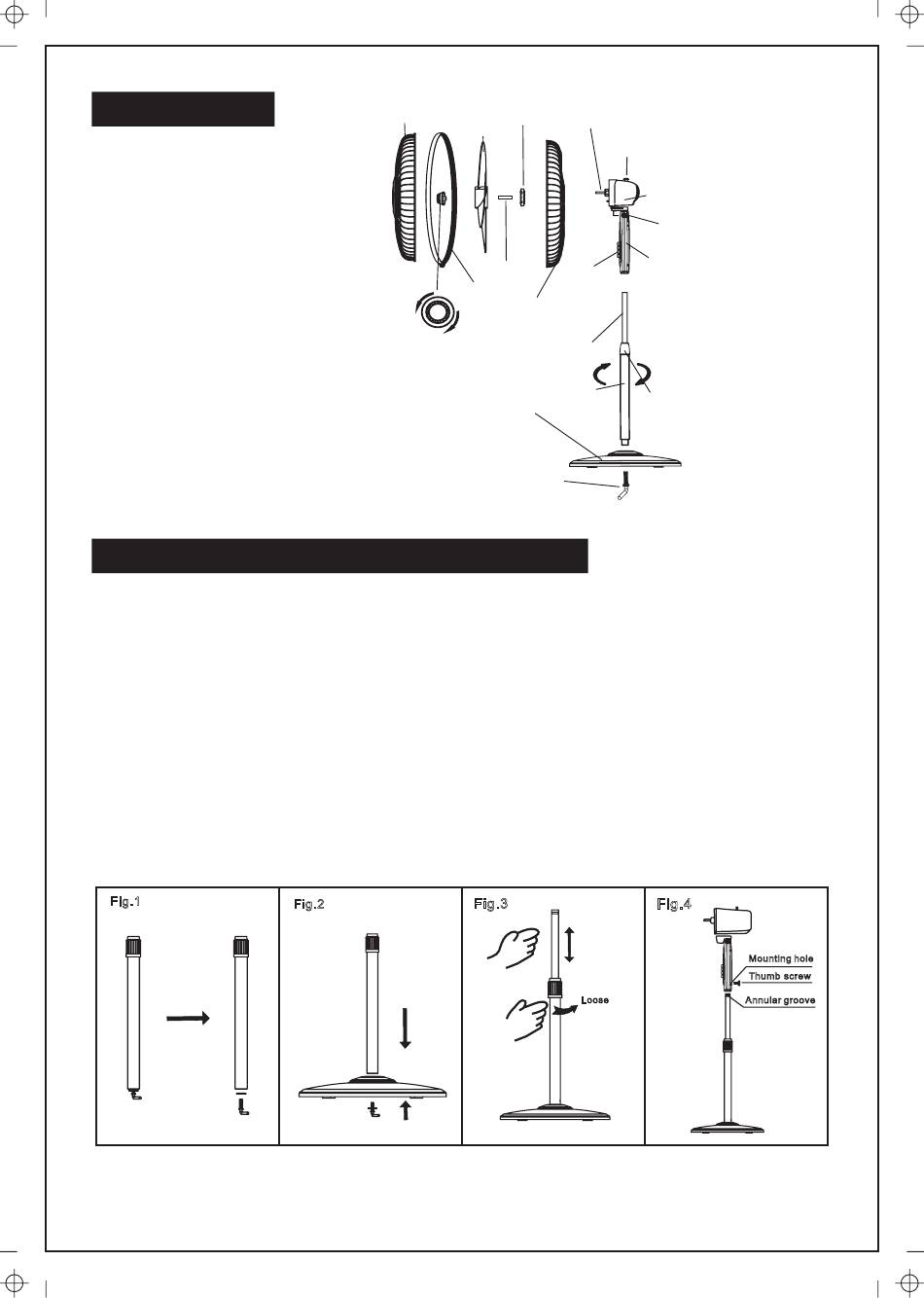

PART FIGURE
ASSEMBLY OF CHASIS & COLUMN UNIT
1. Unscrew the "7" finger screw from the Extension Pole. (Fig.1)
2. Insert the extension pole in the chassis and tighten the "7" Finger screw. (Fig.2)
3. From the extension pole loosen the height adjustment ring and adjust the internal
pipe to the desired height. (Note: If you can't find the internal pole, it slides inside
the extension pole. You can pull it out from the extension pole.) (Fig.3)
4. To attach the head unit to the extension pole, loosen the thumb screw on the
bottom of the head unit. Place the head unit on the extension pole and tighten the
thumb screw in alignment with the groove on the internal pole. (Fig.4)
CAUTION: Height adjustment ring must be fully fastened before the assembly of
the motor section to the extension pole.
Fig.1
Front Guard
Blade
Circlip
Tighten
Loosen
Spinner
Fig.2
7
Plastic Nut
Motor shaft
Oscillating Knob
Plastic sleeve
Speed
Regulator
Back Guard
Internal Pole
Extension
Height
Base
pole
adjustment ring
"7" Finger screw
Fig.3
Loose
Motor
Tilt adjustment knob
Fan body
Fasten
Fig.4
Mounting hole
Thumb screw
Annular groove
