4.6 Wall fitting without JOLLY BOX casing (finished houses)
-
ATTENTION: before installing, read carefully the installation instructions detailed in
paragraphs 4.1, 4.2, 4.3 and 4.4.

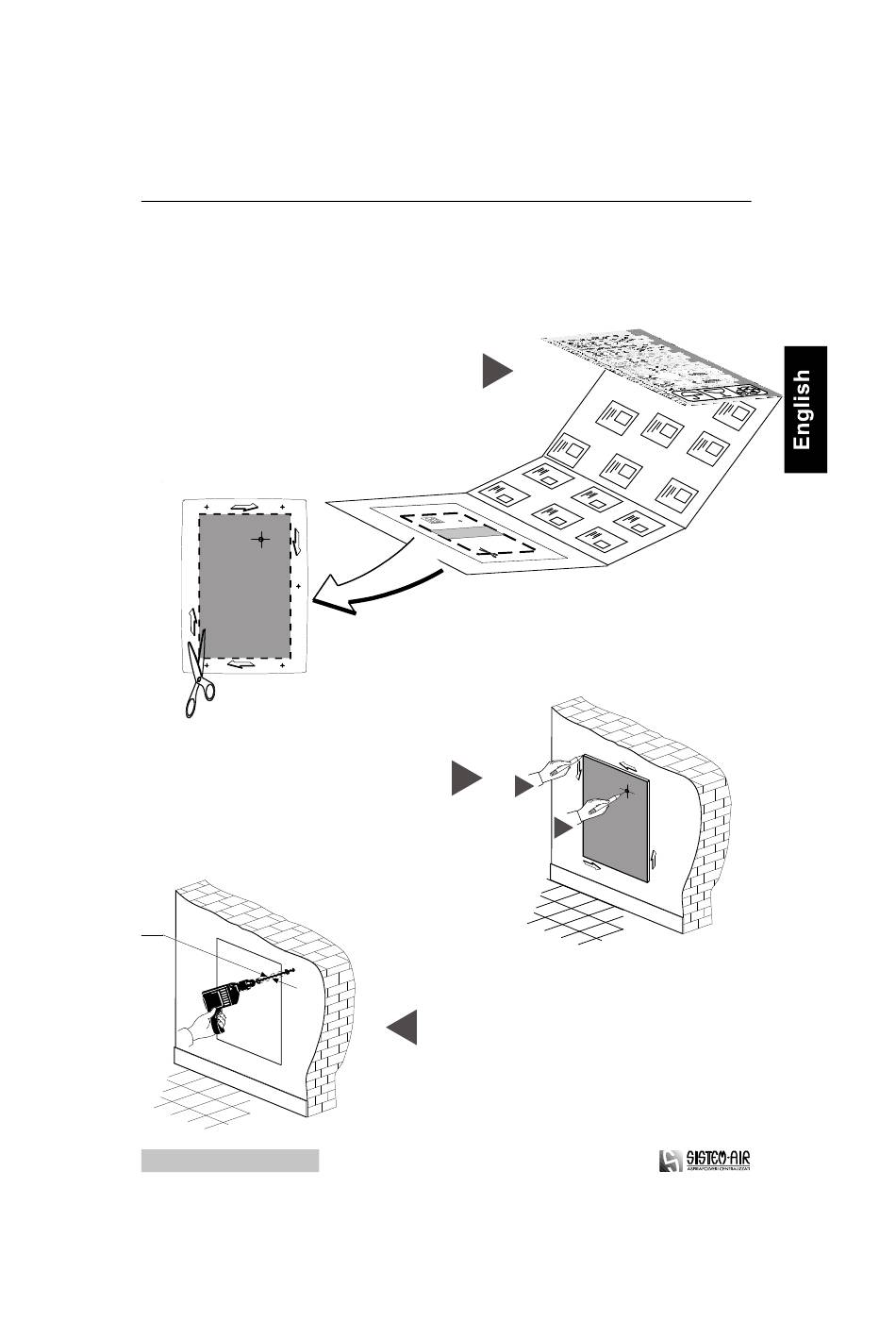

Cut the edge of the cardboard stripe; use a pair
of scissors and carefully follow the dotted line.
Once you have finished the cutting operation,
you have got your TEMPLATE!
Arrange the template on the wall;
draw the outline of the template
and the position of the air exhaust outlet.
Ø 10
Jolly-Jolly Contact 01-04/01
Installation, use and maintenance guide
1
2
Drill a pre-centering hole Ø 10
3
(GO BEYOND THE WALL) in the spot
you have previously marked.
15
1
2
