1 Upgrading the RS485 overvoltage protection

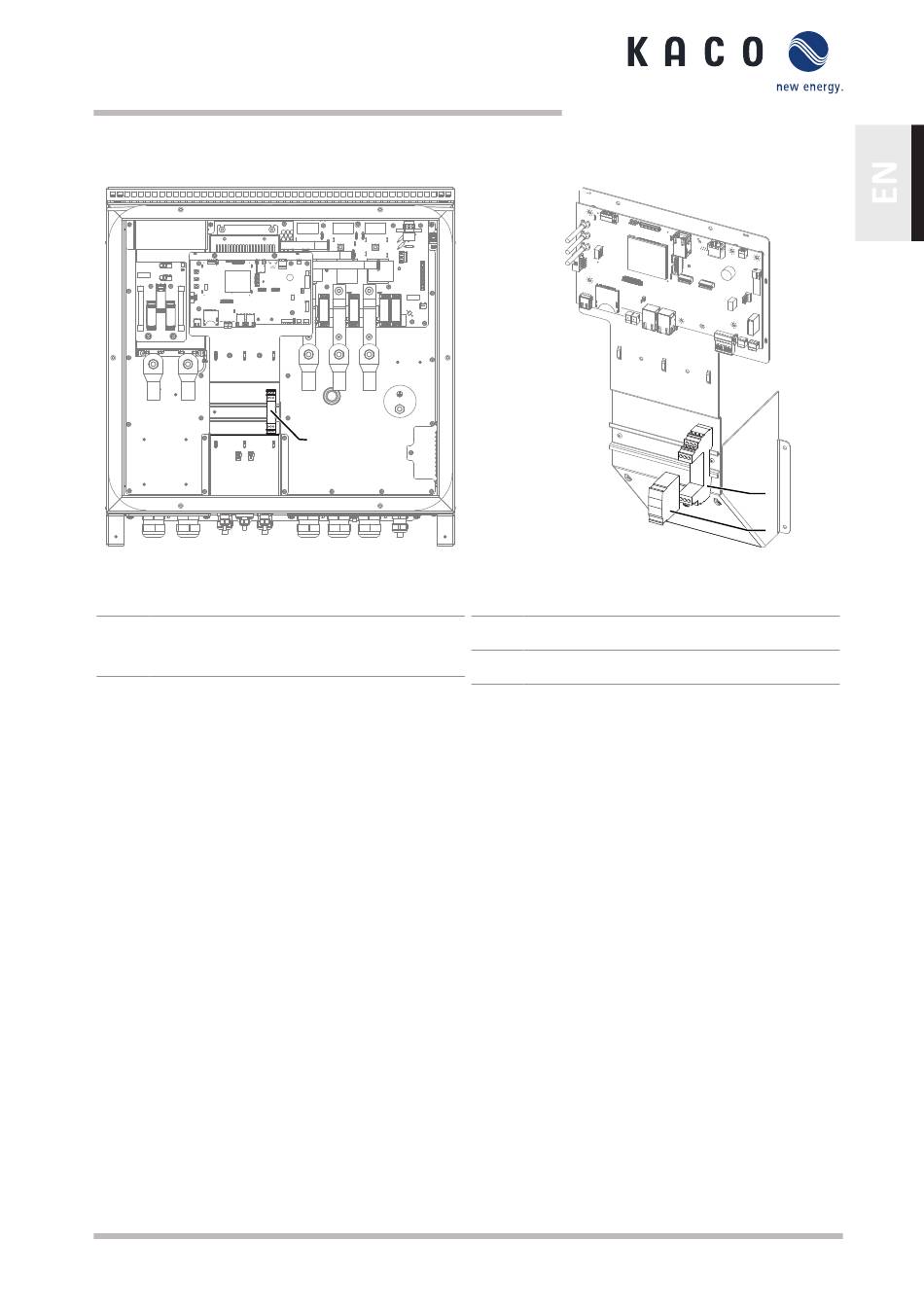

Fig. 1: Localising the RS485 overvoltage
protection
Top hat rail for installing the over-
1
voltage protection
Scope of delivery
ž 1 base element for RS485 overvoltage protection
ž 1 RS485 overvoltage protection
ž 1 cable harness
ž Installation manual [multi-language]
Check the equipment included
1. Inspect the component thoroughly.
2. Immediately notify the shipping company in case of the following:
– Damage to the packaging that indicates that the component may have been
damaged
– Obvious damage to the component.
3. Send a damage report to the shipping company immediately.
RS485 overvoltage protection on blueplanet 87.0-165TL3
Z
1
Fig. 2: Clamp base module and RS485 in-
sert overvoltage protection module
1
2
Base module
RS485 fuse
1
2
