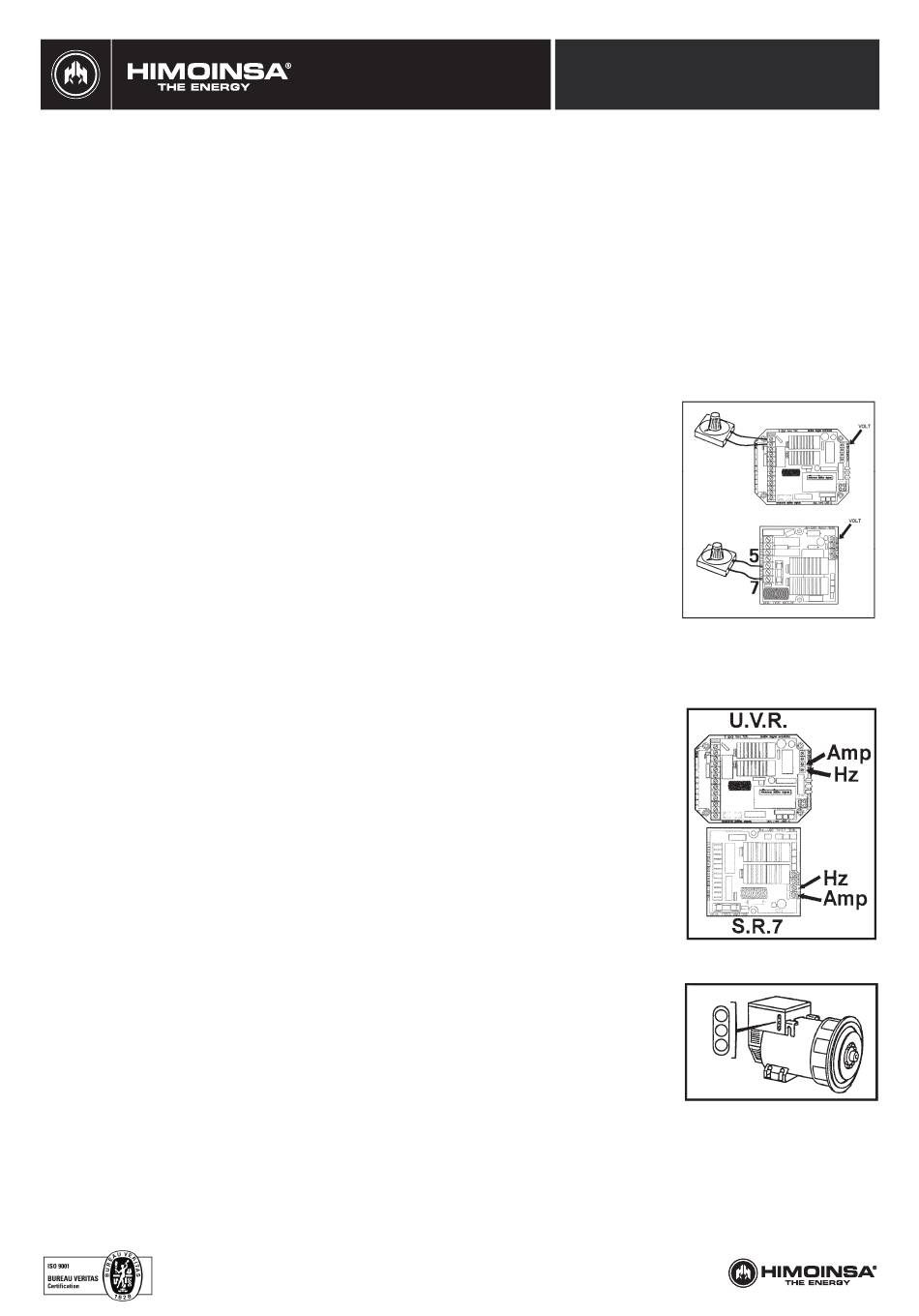

ACCOPPIAMENTO
ELETTRICO
IMPORTANTE :
il controllo di tensione va eseguito a vuoto con
l'alternatore funzionante a frequenza nominale.
Agendo sul potenziometro tensione dei regolatori
elettronici si puo' ottenere la regolazione della ten-
sione entro il ± 5% del valore nominale.
E' possibile ottenere la regolazione della tensione
a distanza in un range di ± 5% inserendo negli
appositi morsetti un potenziometro da 100K (per le
macchine a 6 morsetti) o un potenziometro da 100K
con in serie una resistenza da 100K (per le macchine
a 12 morsetti).
Istruzioni per il collegamento del potenziometro
esterno :
ATTENZIONE :
quando si collega il potenzio-
metro esterno è necessario seguire la procedura
sottoriportata per ottenere un corretto funzionamen-
to dell'alternatore.
1) Ruotare il trimmer VOLT nel regolatore elettronico
completamente in senso antiorario
2) Posizionare il potenziometro esterno a meta' cor-
sa e connetterlo agli appositi morsetti del regolatore
elettronico
3) Tramite il trimmer VOLT del regolatore elettronico
tarare la tensione al valore nominale.
PROTEZIONI
U.V.R.6/1-F - S.R.7/2-G
Entrambi i regolatori sono provvisti di una protezione
di bassa velocita' la cui soglia di intervento e' regola-
bile tramite il potenziometro "Hz" . L 'intervento di tale
protezione e' istantaneo riducendo la tensione di
macchina quando la frequenza scende sotto il 10%
di quella nominale. I regolatori prevedono anche una
seconda protezione (protezione di sovraccarico),
che sente la tensione parzializzata che va al campo
di statore dell'eccitatrice e se essa supera per piu'
di 20 sec il valore stabilito, abbassa la tensione di
macchina limitando la corrente di eccitazione entro
valori di sicurezza.
Il ritardo appositamente inserito consente lo spunto
del motore che normalmente si avvia in 5 - 10 sec.
Anche la soglia di intervento di questa protezione e'
regolabile tramite il potenziometro "AMP" .
U.V.R.6/1-F
Il regolatore U.V.R.6/1-F aggiunge alle prestazioni
prima descritte, le seguenti caratteristiche:
1 - possibilita' di avere il riferimento trifase oltre che
monofase.
2 - segnalazioni a led di autodiagnostica che indicano
le condizioni di funzionamento della macchina: un
led verde, che normalmente acceso indica il funzio-
namento normale del generatore; un led rosso che
indica l'intervento della protezione di bassa velocita',
un led giallo che indica l'intervento della protezione
di bassa velocita', unled giallo che indica l'intervento
della prote-zione di sovraccarico.
PAG / 24
Ctra. Murcia - San Javier, Km. 23,6 | 30730 SAN JAVIER (Murcia) Spain | Tel.: +34 968 19 11 28 / +34 968 19 11 28
Fax +34 968 19 12 17 | Export Fax +34 968 19 04 20 E-mail:info@himoinsa.com | www.himoinsa.com
ELECTRICAL
CONNECTIONS
IMPORTANT :
the generator output voltage must be checked
under no-load conditions, with the correct setting of
frequency.
The voltage may be adjusted by ± 5% of the nomi-
nal, by acting upon the voltage potenziometer on
the electronic regulators.
It is possible to get a remote voltage regulation
of ± 5% inserting in the proper terminals a 100K
potentiometer (for the 6 lead units) or a 100K poten-
tiometer with a 100K resistance in series (for the 12
lead units).
Instructions to follow for the external potentiometer
connection:
CAUTION:
of the alternator, it is necessary to follow the
following procedure, connecting the external
potentiometer.
1) Turn the VOLT trimmer of the electronic regulator
completely anticlockwise.
2) Set the external potentiometer at half turn and
connect it to the proper terminals of the electronic
regulator.
3) Adjust the voltage at the nominal value by the
VOLT trimmer of the electronic regulator.
PROTECTIONS
U.V.R.6/1-F - S.R.7/2-G
Both regulators are provided with an underspeed
protection with an intervention threshold which can
be adjusted by the potentiometer marked "Hz" . This
protection intervenes instantaneously by reducing
the alternator voltage to a safe value when frequen-
cy falls below 10% of the nominal value. These
regulators also have inherent overload protection
which senses the exciter field voltage value. Should
this field voltage value exceed the nominal value for
a period of more than 20 seconds, then again the
alternator voltage is automatically reduced to a safe
operating level. This overload function has a built-in
delay to allow for the overload when starting motors
(normally 5-10 seconds). The operating threshold of
this protection device is adjustable by the potentio-
meter marked "AMP" .
U.V.R.6/1-F
Aside from the above mentioned characteristics, the
U.V.R.6/1-F regulator also offers the following:
1 - possibility to have single-phase as well as three-
phase sensing
2 - led indicators for self-diagnosis which indicate
the unit's operational conditions: a green led which
when lit confirms the alternator's normal functio-
ning; a red led indicates the underspeed protection
is on; a yellow led indicates the overload protection
is on.
