Metra 99-7627HG Instrucciones De Instalación

Installation instructions for part 99-7627HG
Nissan Pathfinder 2013-2016
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Painted to match factory components
KIT COMPONENTS

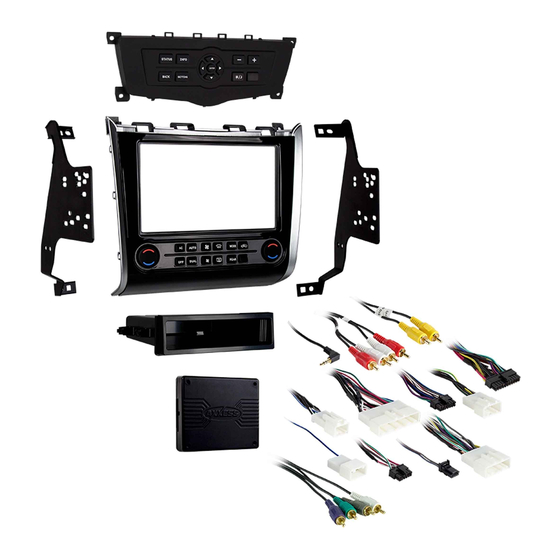

• A) Radio trim panel with climate controls • B) Radio brackets • (C) Keypad assembly • D) Pocket
• E) (4) #8 x 3/8" Phillips screws • F) (2) White panel clips • Axxess interface and harness (not shown)
A B
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • Included with kit Antenna Adapter: • 40-NI12
METRA. The World's best kits.
(without NAV) (with color screen)
99-7627HG
C
®
D E
F
metraonline.com
U.S. PATENT # D789,351
Table of Contents
Dash Disassembly ..............................................2-3
Kit Preparation ....................................................... 3
Kit Assembly
- ISO DIN radio provision with pocket ...................... 4
- ISO DDIN radio provision ...................................... 4
Axxess interface installation ..............................5-7
Screen Operation ..............................................8-10
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• T-20 Torx driver
CAUTION: Metra recommends disconnecting the negative battery
terminal before beginning any installation, unless the vehicle
manufacturer recommends against so. Please check with your
local Dealership for more information. All accessories, switches,
climate controls panels, and especially air bag indicator lights
must be connected before reconnecting the battery or cycling
the ignition. Also, do not remove the factory radio with the key
in the on position, or the vehicle running. It would be best to
remove the key from the ignition and then wait a few seconds
before removing the factory radio.
