Zotac GAMING MEK1 Guia De Inicio Rapido página 4

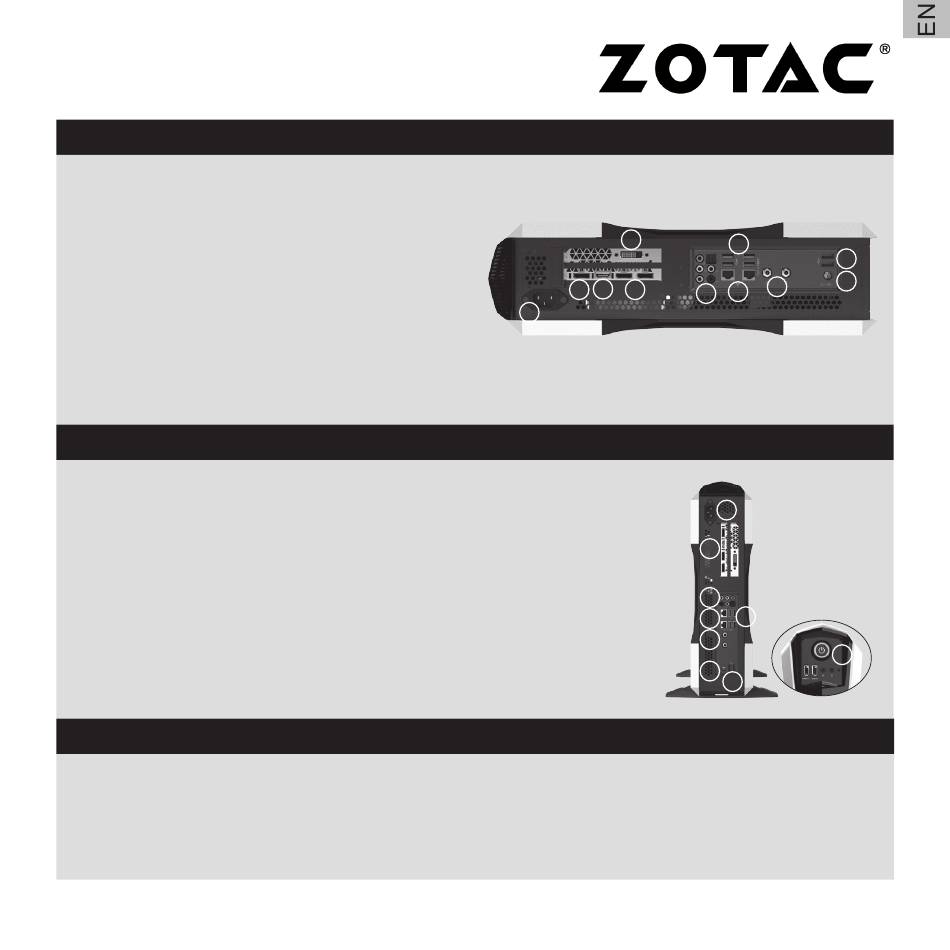

R E A R PA N E L
1. Power cord connector
2. DVI port
3. DisplayPorts
4. HDMI port
5. 7.1 Audio with Optical out
6. USB 3.0 ports
7. LAN (RJ45) ports
8. WiFi antenna connectors
9. USB 2.0 ports
10. PS/2 port for keyboard or mouse
S E T T I N G U P YO U R M E K 1 G A M I N G P C
1. Connect display to DP/HDMI/DVI if port available
2. Connect Audio device
3. Connect the RJ45 to home networks (if needed)
4. Connect the USB 3.0/USB 2.0 devices (optional)
5. Connect antenna for WiFi
6. Connect the Keyboard or Mouse (USB or PS/2)
7. Connect the power cord
8. Turn on the system
C AU T I O N
The ventilation on the enclosure is used for air convection and to prevent the
equipment from overheating. Do not cover the ventilation and suggest to install
the equipment with a minimum of 10 cm clear space on all sides.
