Retrofitting entre interruptores fijos emax 2 e2.2, e4.2, e6.2 y entelliguard g env 1, env 2, env 3& m-pact plus/m-pact frame size 1, size2
ENTELLIGUARD G VS EMAX 2 Door Cut out Details

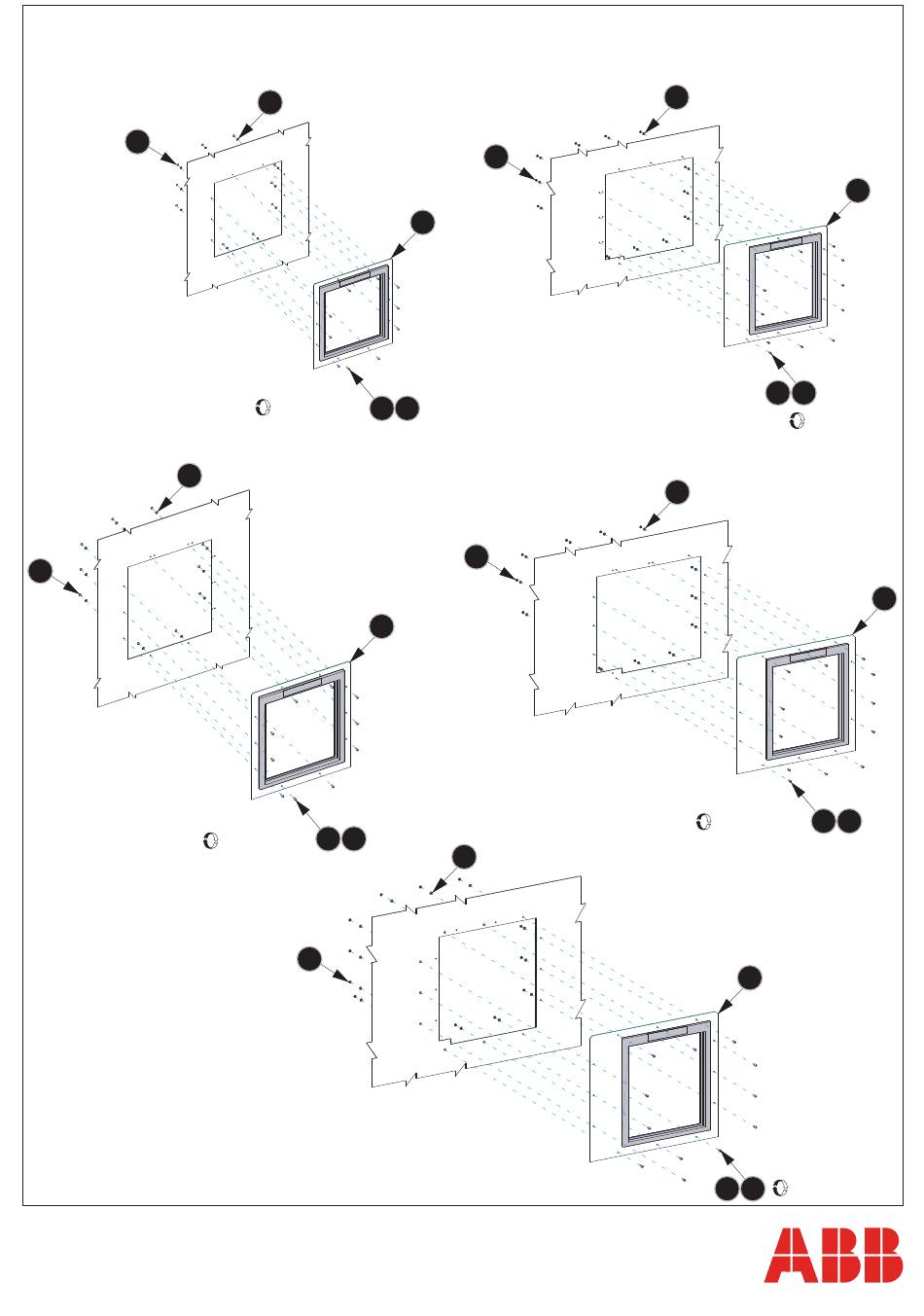

- Assemble the door adapter.
36
For Emax2.2 4P
For Emax2.2 3P
5H
5H
5J
5J
4B
4A
5H
5I
5I
5H
2.5Nm(1.8 lb ft)
2.5Nm(1.8 lb ft)
For Emax4.2 3P
For Emax4.2 4P
5H
5H
5J
5J
4B
4A
5I
5H
2.5Nm(1.8 lb ft)
For Emax6.2 3P
5I
5H
2.5Nm(1.8 lb ft)
5H
5J
4A
5H
5I
2.5Nm(1.8 lb ft)
