Principal - Diagrama De Circuito De Rf Servo - Lg Mcs565F Manual De Servicio

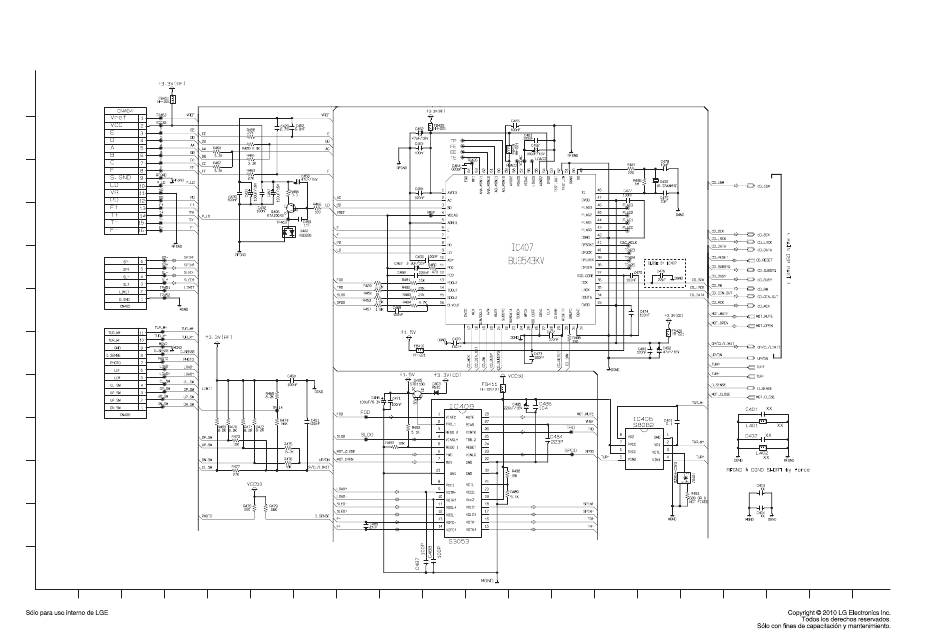

7. PRINCIPAL - DIAGRAMA DE CIRCUITO DE RF SERVO

12
11
10
9
8
7
6
5
4
3
2
1
A B C D E F G H I
3-39
J K L M N
3-40
O P Q R S
MCT565
MAIN #006 RF SERVO
EBY60828201 REV 4.2
2010. 07. 05
