Installing The Vr Heat Sink - Dell Optiplex 7080 Manual De Servicio

CAUTION: For maximum cooling of the processor, do not touch the heat transfer areas on the heat sink. The oils in
your skin can reduce the heat transfer capability of the thermal grease.
2. Remove the side cover.
About this task

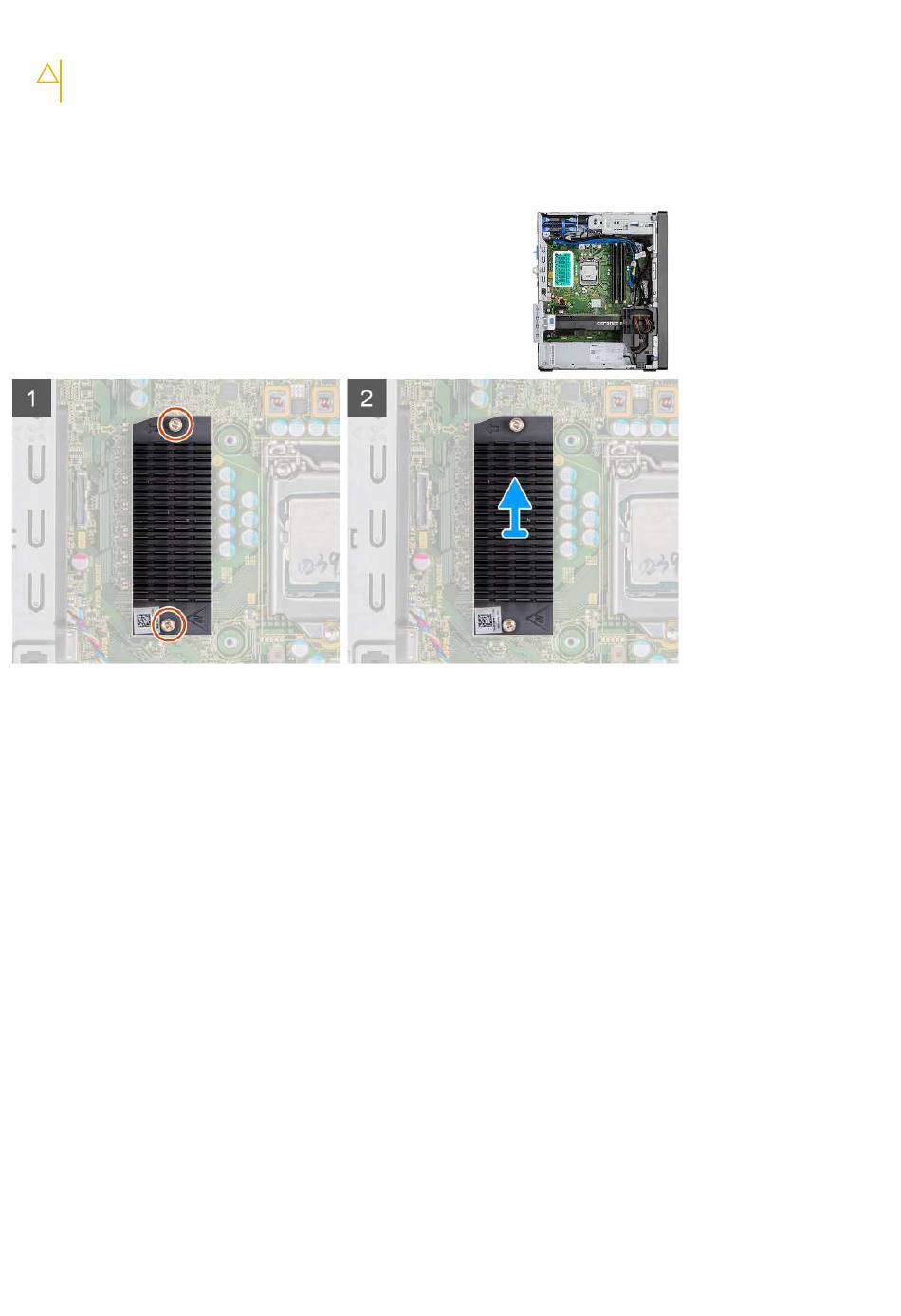

The following images indicate the location of the VR heat sink and provides a visual representation of the removal procedure.
Steps
1. Loosen the two captive screws that secure the VR heat sink to the system board.
2. Lift the VR heat sink off the system board.

Installing the VR heat sink

Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the VR heat sink and provides a visual representation of the installation procedure.
