3) When charging is completed, the light will turn
to green.
4) After fully charged, unplug the charger and
remove the battery pack.
NOTE: If the battery pack is locked in the
charger, press the battery pack release button
and remove it.
WARNING: When battery charge runs
out after continuous use or exposure
to direct sunlight or heat, allow time for the
battery to cool down before re-charging to
achieve the full charge.

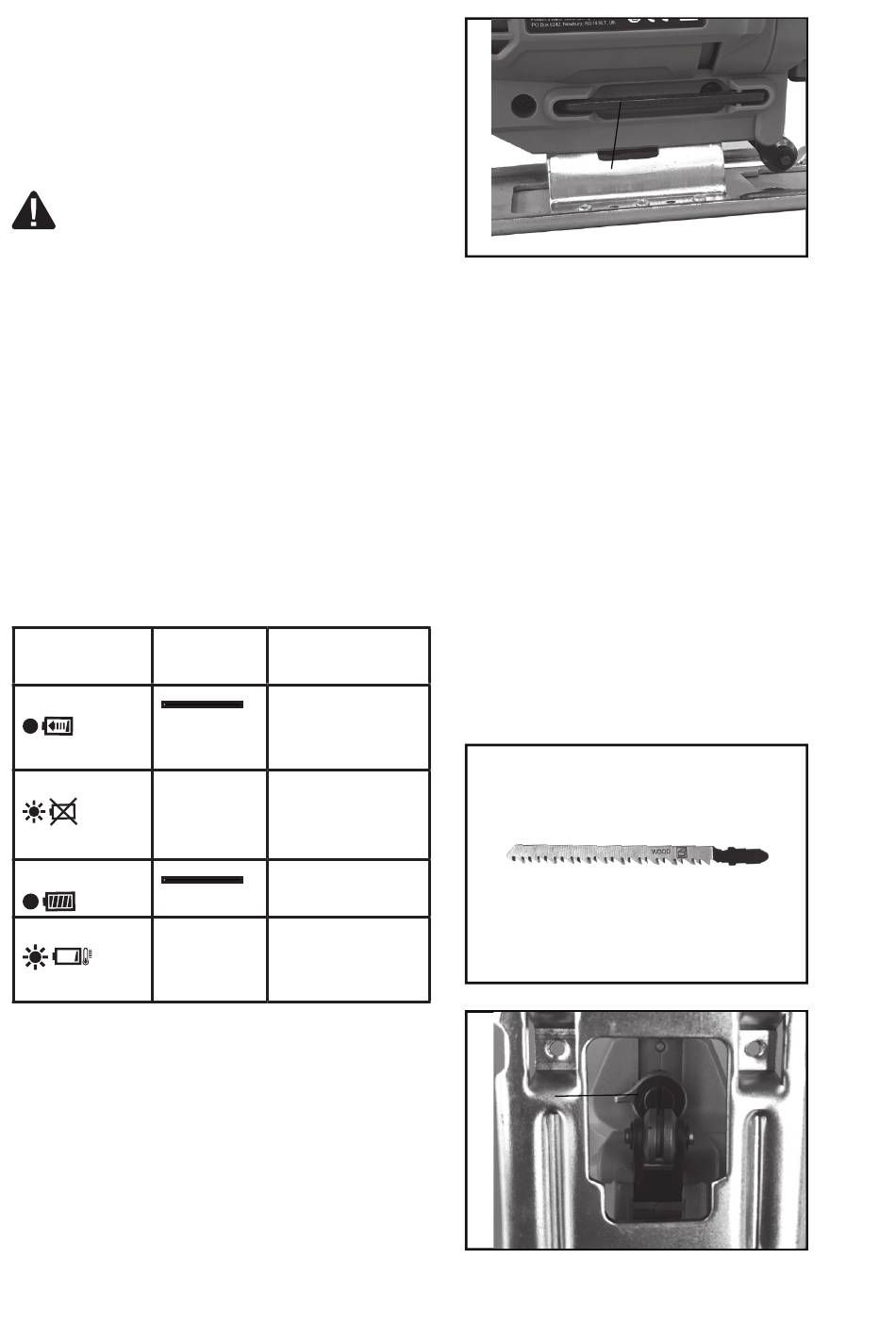

CHARGING INDICATOR
This charger is designed to detect some
problems that can arise with battery packs.
Indicator lights indicate problems (see table
below). If this occurs, insert a new battery pack
to determine if the charger is OK. If the new
battery charges correctly, then the original pack
is defective and should be returned to a service
center or recycling service center.
If the new battery pack displays the same
problem as the original Battery Pack, have the
charger tested at an authorized service center.
Light ON/OFF
flash
Red on
Red flash - - - -
Green on
Green flash - - - -
NOTE: The battery chargers and the battery packs
illustrated or described above are not included in
the delivery.
ASSEMBLY
1. HAND GRIP AREAS
Always ensure you maintain a firm grip whilst
operating your jigsaw.
2. ALLEN KEY STORAGE(SEE FIG. C)
The allen key (13) is placed at the position as
shown.
40
Status
Charging
Defective Bat-
tery
Fully Charged
Hot/Cold Delay
C
13
3. BLADE FITTING (SEE FIG. D, E, F)
NOTE: Before any work on the tool itself,
remove the battery. Wear protective gloves when
assembling the saw blade. You can only use the
blade type shown in (SEE FIG. D). Don't use
other blade types.
- INSERTING THE SAW BLADE
To open the Tool-free Blade Holder rotate the
ring clockwise (Jigsaw upside down) and hold in
position (SEE FIG. E). Then fully insert the blade
into the blade holder slot with blade teeth facing
forward and release the ring, which will self
rotate and clamp over the top of the blade. Push
the blade into the blade holder again to ensure it
is locked in position.
Ensure the edge of the blade is located in the
groove of the blade guide (SEE FIG. F).
D
E
