Install the camera unit

Attach
screw to camera
1. Attach the network cable to the camera unit; and the cable for audio and I/O if required. It is
recommended that the network cable is twisted to a loop as shown in the illustration above.
Note:
Be careful not to stretch or bend the network cable too much since this could cause damage to
the network cable.
2. Insert the SD memory card (optional).
3. Pull aside the springs in the unit casing and click the camera unit in place.
4. Attach the fan connector to the connector in the camera unit.
5. Attach the two M4x8 20 screws to the camera for greater stability.
These screws are only necessary to secure against heavy shocks and vibrations.
Note:
The AXIS P3343-VE/P3344-VE/P3346-VE/P3367-VE can
also be fitted with a metal conduit for protecting the
cabling when cables are routed along the wall.

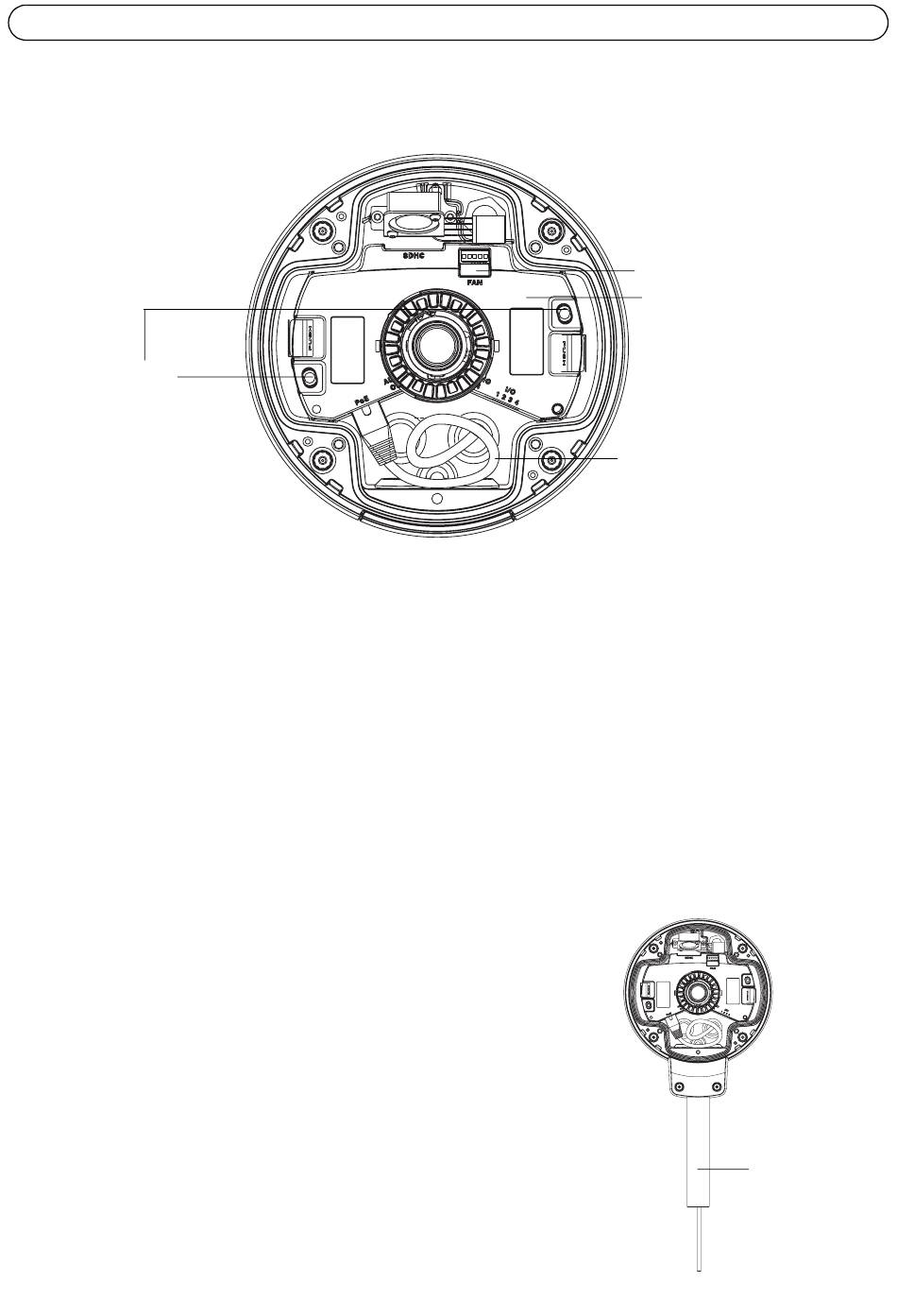

AXIS P33-VE Series Network Camera Installation Guide
Connector for fan
Camera unit
Network cable
Conduit
