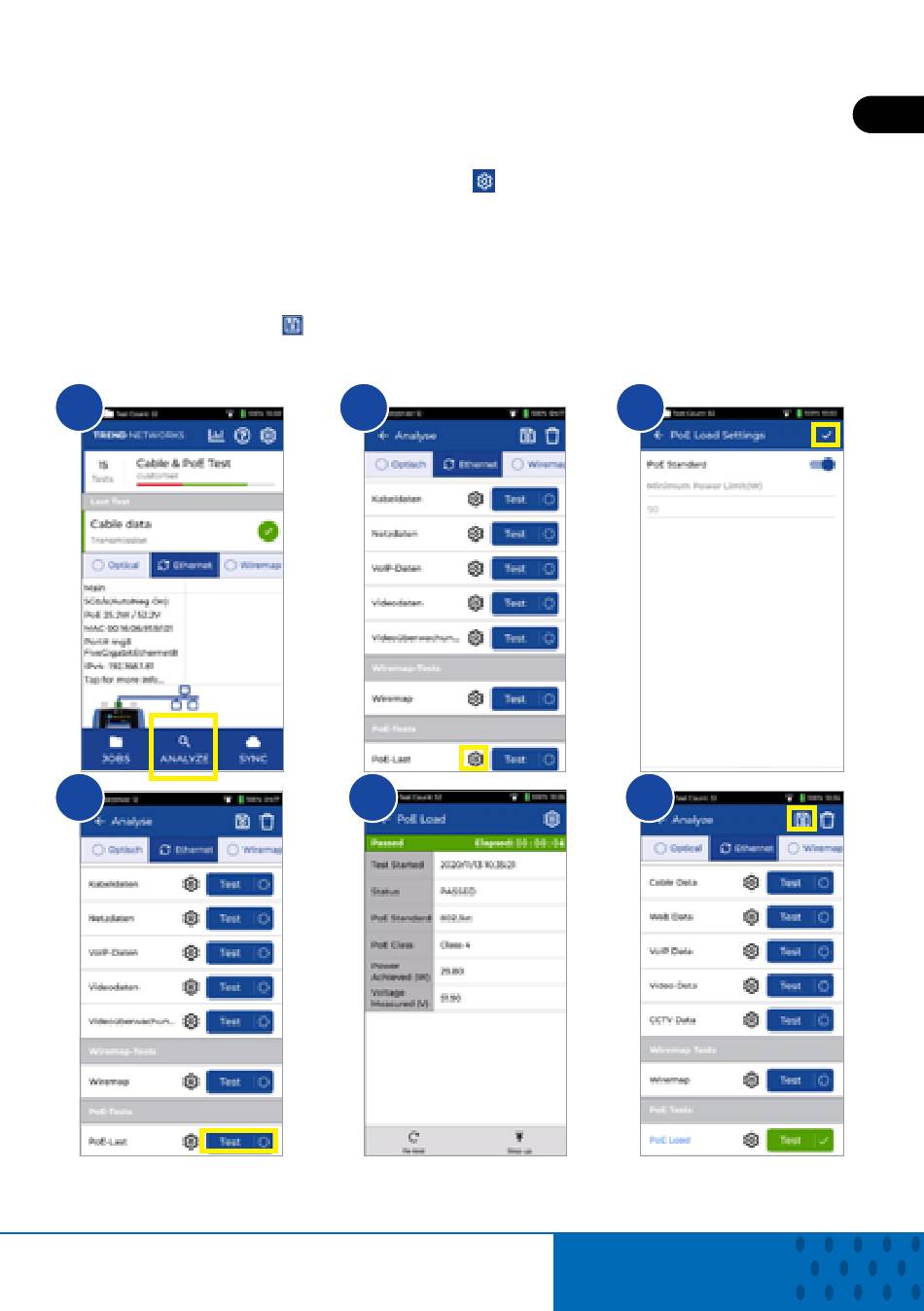

PoE Test
1. Connect the display unit to the network or device under test
2. Set the unit IP address in DHCP via
3. Set link speed to Auto via Settings - Network - RJ45 - Link Speed
4. After the unit link up the tester is ready to setup
5. Set up the PoE standard if required
6. Press Test key to run the test
7. Step up the max value of the PoE load if required in the result page
8. Save the results
1
4
Settings - Network - IPv4
2
5
3
6
