Flame inspection window

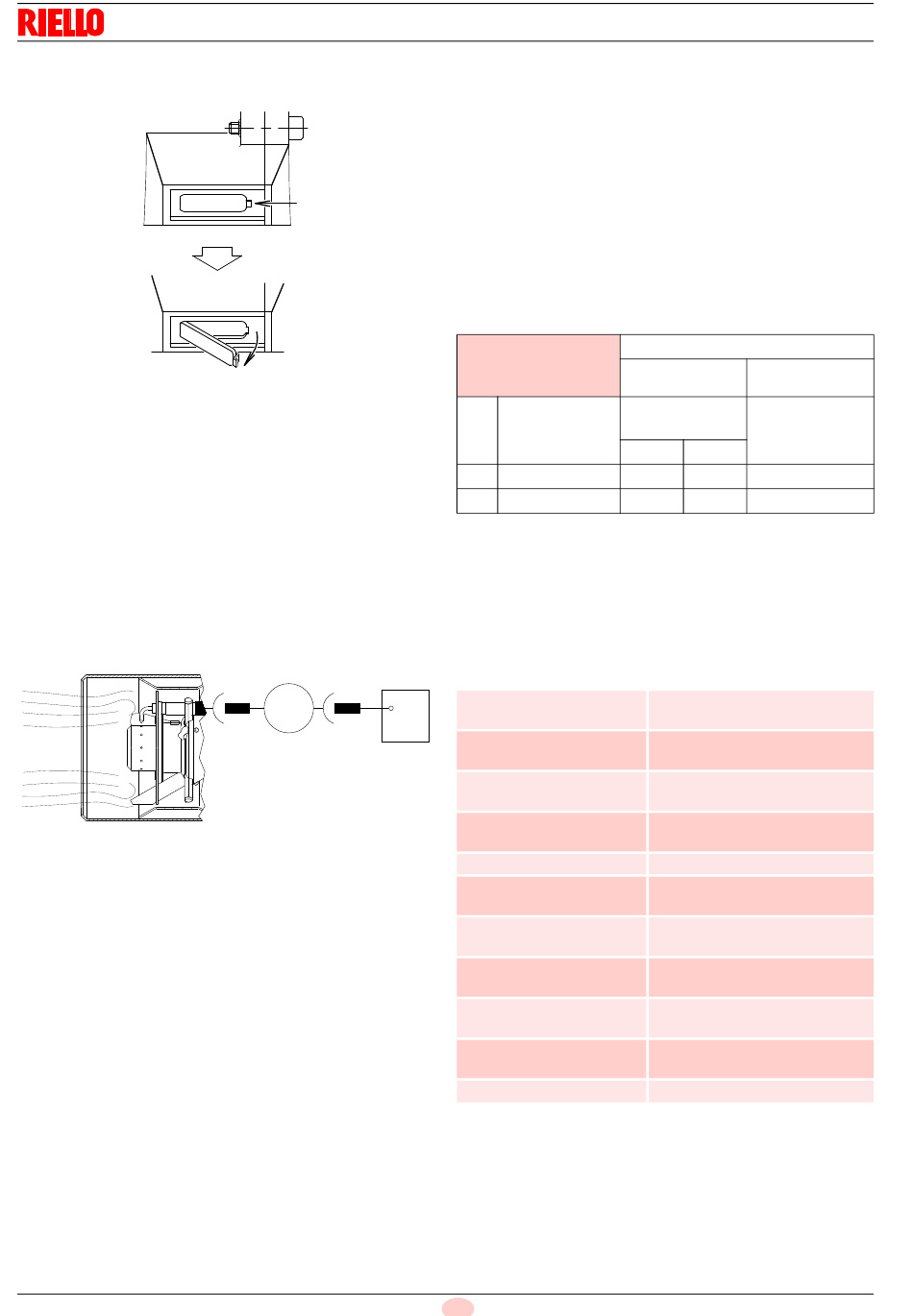

Clean the glass of the flame inspection window (Fig. 38).
D484
Flame presence check
The burner is fitted with an ionisation system to check that a
flame is present (Fig. 39).
The minimum current for control box operation is 6 µA.
The burner provides a much higher current, so controls are not
normally required. However, if it is necessary to measure the ion-
isation current, disconnect the plug-socket 23)(Fig. 5 on page 11)
on the ionisation probe cable and insert a direct current microam-
meter with a base scale of 100 µA.
Carefully check the polarities!
Servomotor
Release cam 4)(Fig. 31 on page 24) from the servomotor, ro-
tating notch 2)(Fig. 31 on page 24) by 90° and manually check
that it rotates smoothly back and forth.
Connect the cam again 4)(Fig. 31 on page 24).
Burner
Check for excess wear or loose screws in the mechanisms con-
trolling the air damper and the gas butterfly valve.
Also make sure that the screws securing the electrical leads in
the burner connections are fully tightened.
Clean the outside of the burner, taking special care with the artic-
ulated couplings and cam 4)(Fig. 31 on page 24).
Fan
Check to make sure that no dust has accumulated inside the fan
or on its blades, as this condition will cause a reduction in the air
flow rate and provoke polluting combustion.
20040559
Maintenance
Fig. 38
D3843
µA
10
RMG/M
Fig. 39
30 GB
Boiler
Clean the boiler as indicated in its accompanying instructions in
order to maintain all the original combustion characteristics in-
tact, especially the flue gas temperature and combustion cham-
ber pressure.
Combustion
If the combustion values found at the start of the intervention do
not satisfy current standards or anyway indicate a poor state of
combustion (consult the table below), contact the Technical As-
sistance Service for the necessary adjustments.
NOTE:
It is advisable to set the burner according to the type of gas used
and following the indications of Tab. H.
EN 676
Theoretical
max. CO
GAS
2
0 % O
2
G 20 11,7
G 25 11.5
7.2.4

Safety components

The safety components must be replaced at the end of their life
cycle indicated in Tab. I.
The specified life cycles do not refer to the warranty terms
indicated in the delivery or payment conditions.
Safety component
Flame control
Flame sensor
Gas valves (solenoid)
Pressure switches
Pressure adjuster
Servomotor (electronic
cam) (if present)
Oil valve (solenoid)(if
present)
Oil regulator (if present)
Oil pipes/ couplings
(metallic) (if present)
Flexible hoses (if present)
Fan impeller
Air excess
Max. output Min. output
  1.2   1.3
Calibration
CO
CO %
2
mg/kWh
 = 1.2  = 1.3
 100
9.7 9.0
 100
9.5 8.8
Life cycle
10 years or 250.000
operation cycles
10 years or 250.000
operation cycles
10 years or 250.000
operation cycles
10 years or 250.000
operation cycles
15 years
10 years or 250.000
operation cycles
10 years or 250.000
operation cycles
10 years or 250.000
operation cycles
10 years
5 years or 30.000 pressurised
cycles
10 years or 500.000 start-ups
Tab. H
Tab. I
