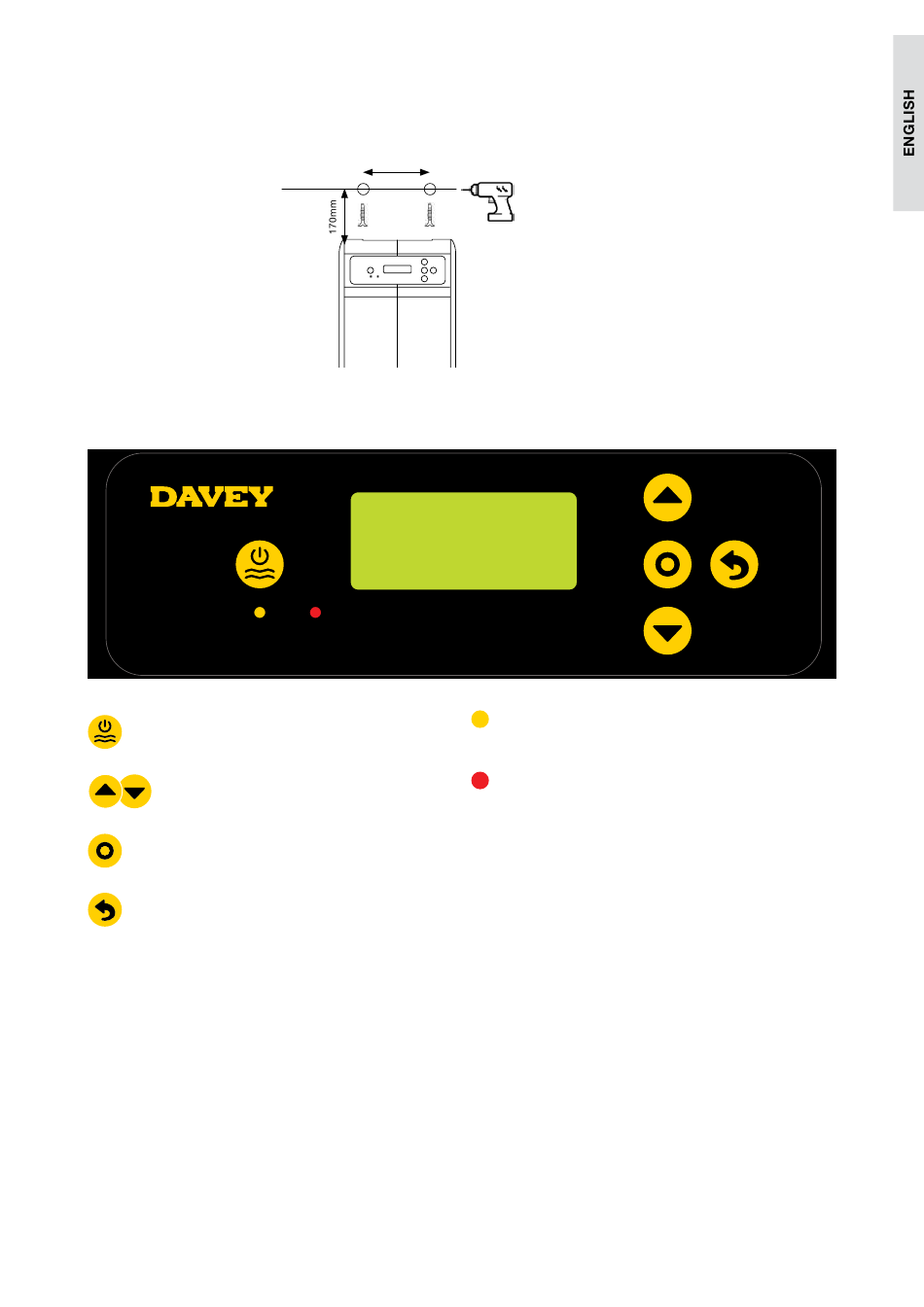

The mounting kit provided should be used to mount the Davey Lifeguard controller. Davey recommends
Davey Lifeguard mounting holes be drilled 170mm higher than the top of the current EcoSalt2 power
supply box (refer Figure 4.23).

5. CONTROL PANEL

5.1 LAYOUT

System On/Off
Menu up/down
Menu/setting select
Menu/setting cancel (go back)

6. FIRST TIME START-UP PROCEDURE

Before attempting start up, ensure:
• all probes that you plan to use are plugged in and ready to be plumbed in;
• have all your calibration solutions nearby;
• if a mistake is made, you can go back anytime using the Menu/setting cancel.
Allow between 4 and 15 minutes (depending on user confidence) for first time start-up.
205mm
PUMP FILTER
PUMPE FILTER
PUMPA FILTRO
POMP FILTER
BOMBA FILTRO
BOMBA FILTRO
POMPE FILTRE
Figure 4.23
Power indicator
(lit when on)
Alarm indicator
(flashes when alarm active)
Time out
(whenever device is left for 30 seconds
without input from user, settings are saved,
and home HOME SCREEN displayed)
