Connect To An External Audio Device; Connect To Other Devices - Soundstream H-540DiMT Manual De Instrucciones

1 Using COMPONENT socket
- Connect a progressive scan TV through
component video for higher quality video.
- Connect component video cables(red/blue/
green-not supplied) to:
The VIDEO OUT (Y Pb/Cb Pr/Cr)sockets on this

unit.
The component video input sockets on the TV.

Note:
- The progressive scan video quality is only
available when a progressive scan TV is
connected.
- If your TV does not support progressive scan,
you cannot view the picture.
- For how to activate progressive scan on your
TV, refer to the TV user manual.
The component video input jack on the TV might be
labeled as Y Pb Pr or YUV.
2 Using AV OUT socket
Connect audio cables to:
- The AUDIO OUT R / L sockets on this unit.
- The audio input sockets on the external audio
device.
Connect the composite video cable to:
- The VIDEO socket on this unit.
- The video input socket on the TV.
3 Using HDMI socket
Connect HDMI (High Definition Multimedia
Interface), DVI (Digital Visual Interface), or HDCP
(High-bandwidth Digital Contents Protection)-
compliant TVs through HDMI for the best picture
quality. This connection transmits both video and
audio signals. Through this connection, you can
watch DVDs that contain HD (High-Definition)
content.
Note:
S o m e T V s d o n o t s u p p o r t H D M I a u d i o
transmission.
Connect an HDMI cable to:
- The HDMI socket on this unit.
- The HDMI socket on the TV.
Note:
If your TV has only a DVI connection, connect
t h r o u g h a H D M I / D V I a d a p t o r. A n e x t r a
audio connection is needed to complete this
connection.

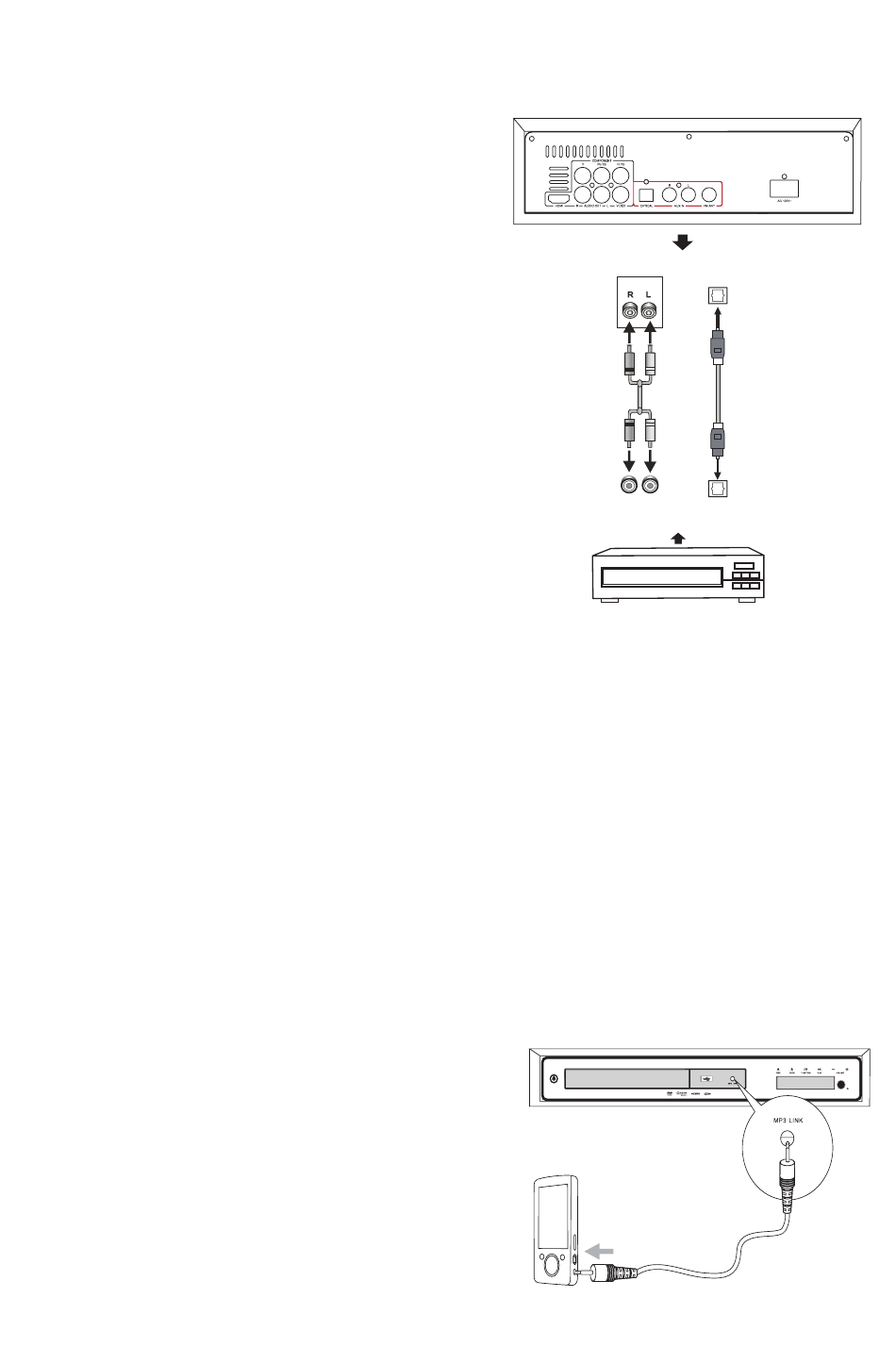

Connect to an External Audio Device

You can also listen to an external audio device
through this unit.
DVD Pl ayer A ud i o Input
1 Using AUX IN socket
Connect audio cables to:
- The AUX IN sockets on this unit.
- The audio output sockets on the external
audio device.
2 Using OPTICAL socket
Connect a optical cable to:
- The OPTICAL socket
- The digital input socket on the digital
recorder.

Connect to Other Devices

Listen to an Audio Player
You can listen to audio player through this unit.
8
OPTICAL
AUDI O
MIX R MIX L
OPTICAL
Exter nal A udi o Output
