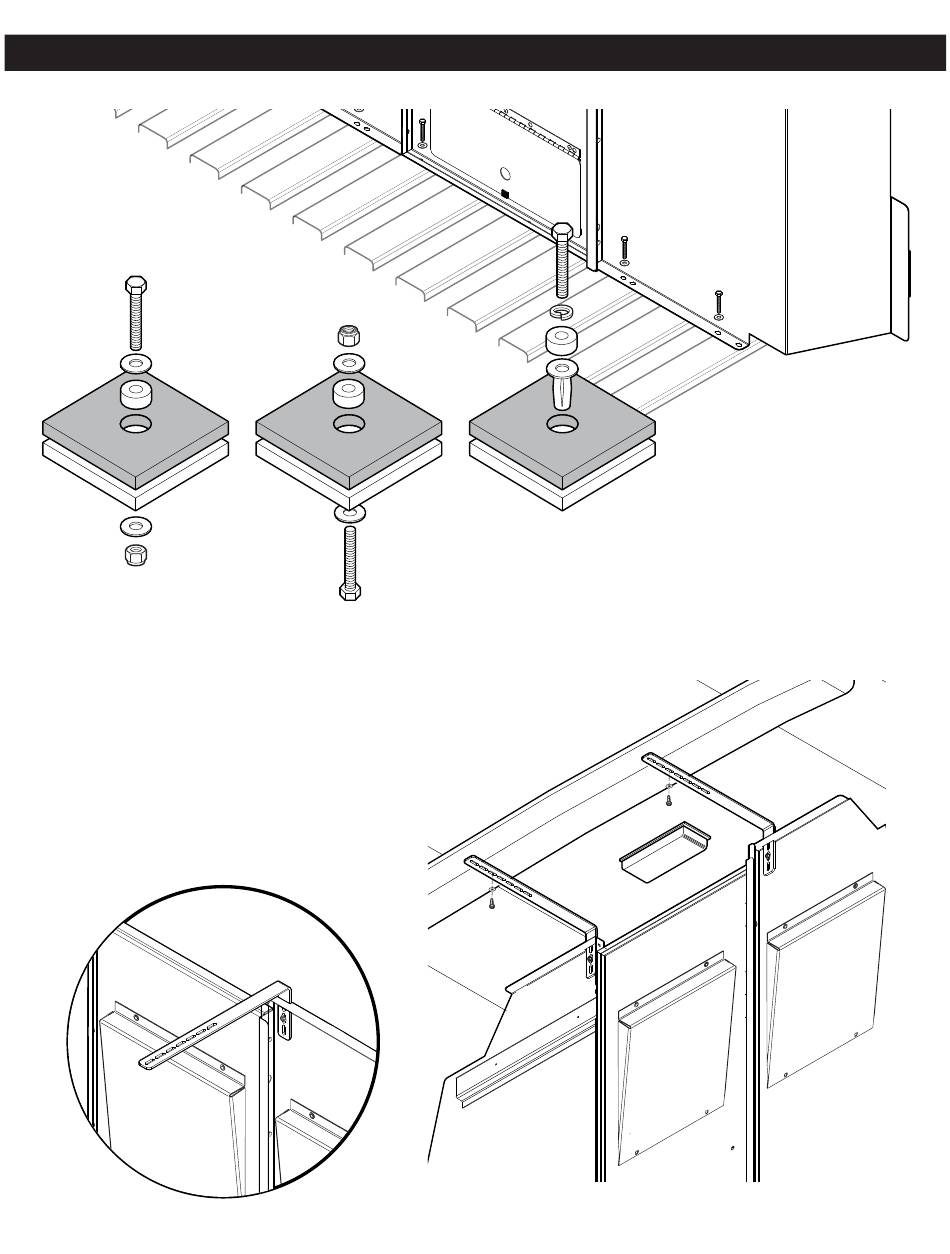

NOTE: The floor bolting solution
could be a variation on any of these
three examples with or without the
floor mat.
TOP DOWN INSTALLATION
THROUGH FLOOR MAT
AND VAN FLOOR
STEP 8: Realign the Driver Side Attachment
Brackets on top of the Blind Fasteners and
secure them to the wall or wall rib using two (2)
1/4-20 x 3/4" Self-drilling screws and 1/4" Lock
Washers.
Tighten all fasteners that were left loose
in Step 4.
INSTALLATION INSTRUCTIONS
BOTTOM UP INSTALLATION
THROUGH FLOOR MAT
AND VAN FLOOR
6
BLIND FASTENER INSTALLATION
THROUGH FLOOR MAT AND
VAN FLOOR (SEE PAGE 7)
Part No. 24-0306 REV. D ECN 5282 03/13
