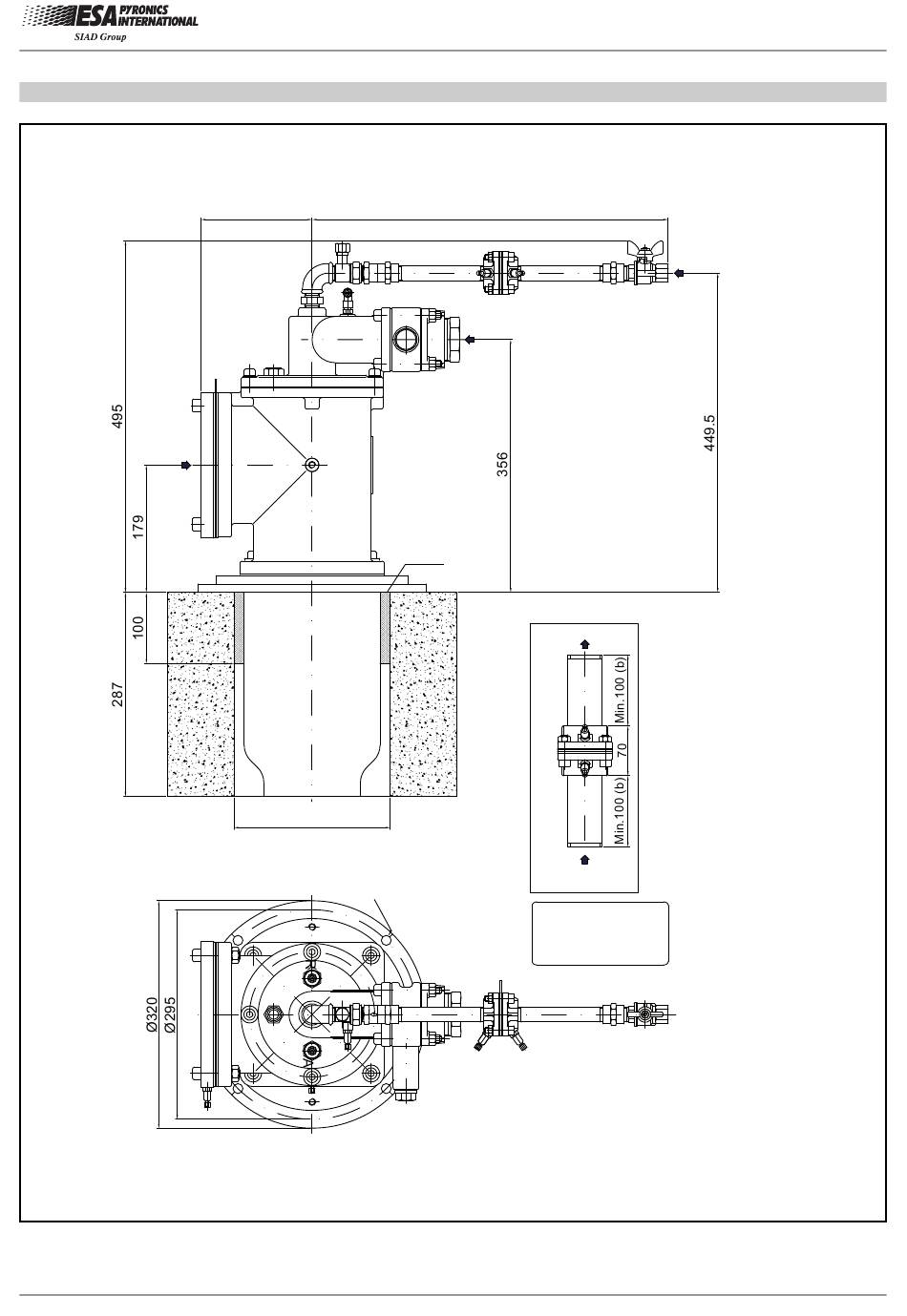

DIMENSIONES MÁXIMAS OCUPADAS - EMB-6-SIK-GPL
Air Inlet
DN150
www.esapyronics.com
156
Ceramic fiber
FURNACE HOUSING
HOLE Ø220
Nr.4 holes Ø14 eq.sp.
501
Gas Inlet
Rp1.1/2"
insulation
Gas orifice flowmeter (included)
Assembly by customer
R 1.1/2"
Gas Inlet
R 1.1/2"
NOTES:
(a) Suitable on
customer request
(b) by customer
EMB-SIK - E3506 rev. 02 - 10/02/15
Premixing Air Inlet
ø1/2"
D3506I19
