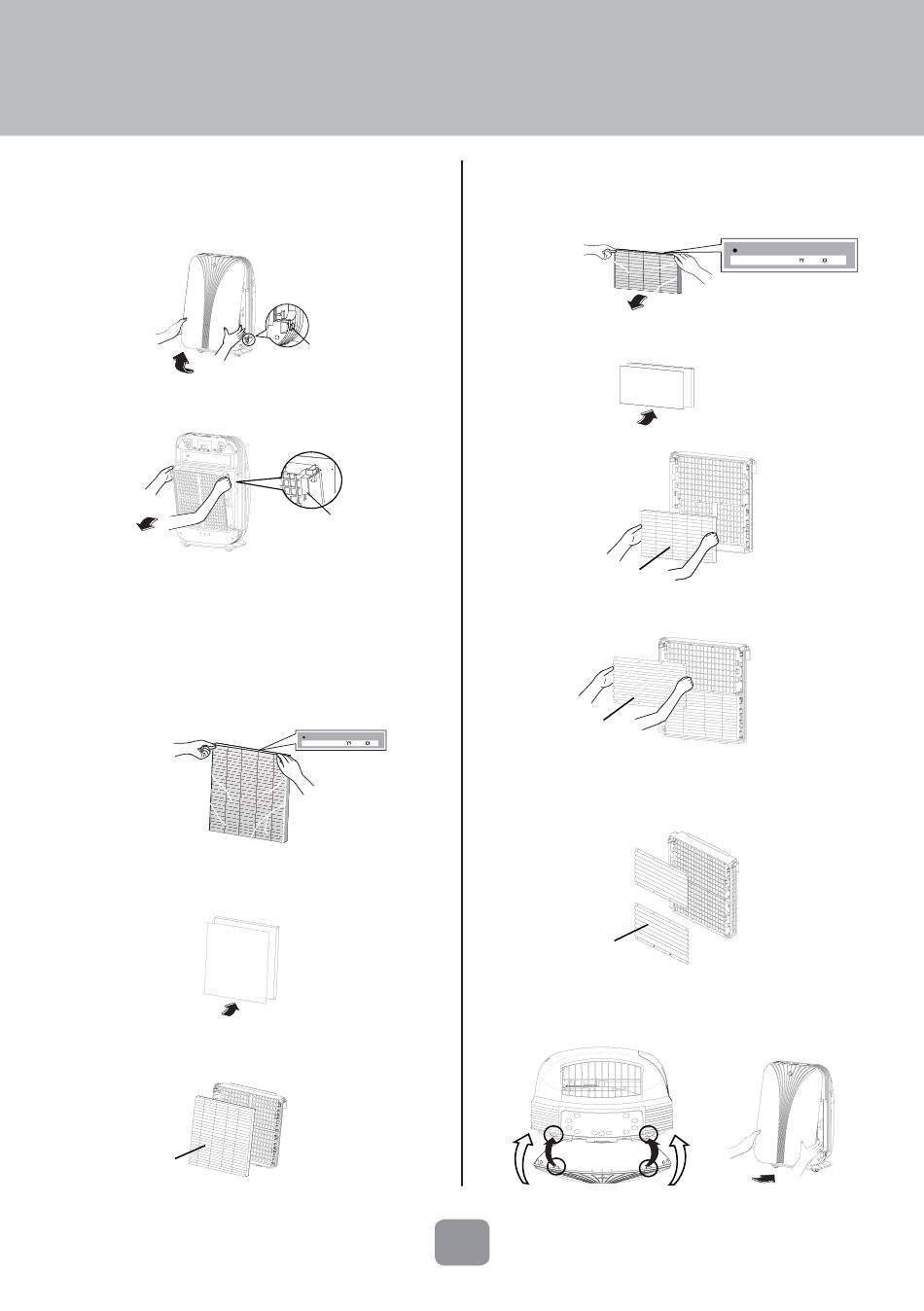

3.Installation for Filter of Dust
Collector subassembly
1.Press clasps with hands and remove front
panel.
2.Draw handles of dust collector subassembly
outwards to remove dust collector.
3.Each model has slightly different fi lter and
fi ltering sponge. Please refer to the below
for installation.
● GCF220BKNA
1).
Take out the strainer sub-assy from carbon
box, tear up the sealing tape and write down
the initial operation date on the label.
2).When the blue fi lter sponge on the strainer
sub-assy is dirty, take a new blue fi lter sponge
from white box to replace it.
Blue surface
3).Assemble fi lter into dust collector subassembly.
White surface
Copyright 2018. This translation is property of GREE PRODUCTS SL. All rights reserved. Total or partial reproduction without its express authorization is prohibited.
Clasp
Handle
The suggested operation time is 2 years
put into operation in:
8
● GCC240BKNA
1).Take out the strainer sub-assy from carbon
box, tear up the sealing tape and write down
the initial operation date on the label.
2).When the blue fi lter sponge on the strainer
sub-assy is dirty, take a new blue fi lter sponge
from white box to replace it.
Blue surface
3).Assemble fi lter into dust collector subassembly.
White surface
4).Remove fi ltering sponge from package and
assemble it in the dust collector.
Orange surface
● GCS260BKNA
1).Take out the fi lter sponge and the install it into
the dust collector..
Orange surface
4.After assembling dust collector, assemble
front panel. Please note that hangers on
the unit shall be assembled fi rstly and the
position is shown in the below picture.
The suggested operation time is 2 years
put into operation in:
