2 2 – – I I n n s s t t a a l l l l a a t t i i o o n n I I n n s s t t r r u u c c t t i i o o n n s s
• Ensure that the Matrix console is positioned on a secure level surface.
• Position the remote power supply unit in a convenient position below or behind the Matrix. The power supply must be located on a hard
surface and must remain upright so that it stands on its rubber feet.
• The power supply is convection cooled and sufficient space must be allowed for ventilation. A minimum of 200mm clearance must be
maintained both in front of and behind the unit.
The PSU unit must not be left in a position where it may become accidentally covered – such as by items of clothing or paper – as
this could constitute a fire risk.
• Confirm that the PSU unit is switched off before connecting the DC input lead.

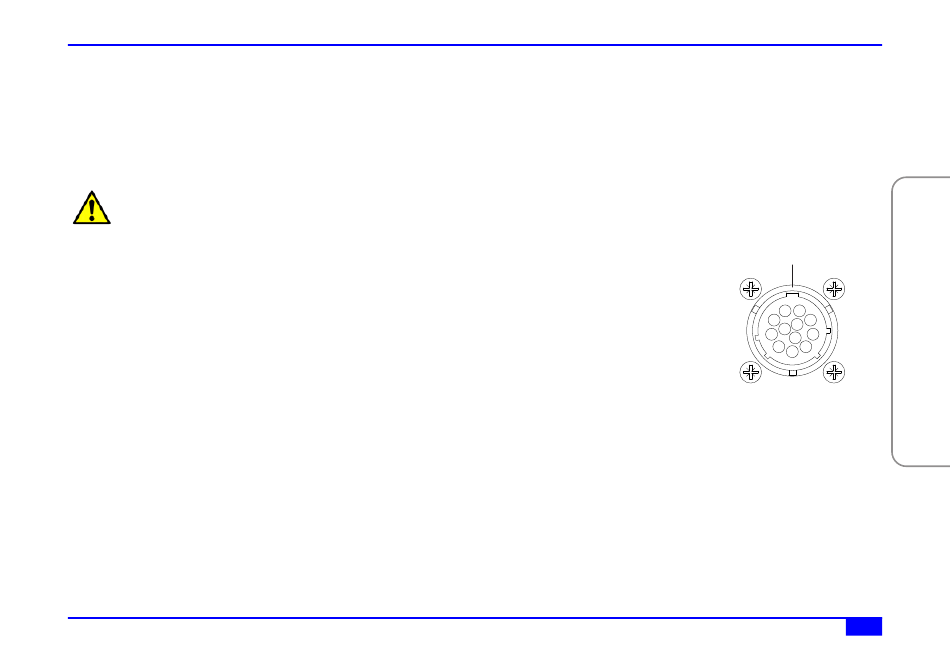

• Connect the captive cable attached to the PSU to the input plug on the rear of the Matrix console. The 12-pin
connector is keyed so that it can only be inserted in one position – the rectangular key on the free socket
should be in the uppermost position.
• Push the connector inwards and, at the same time, rotate the silver locking ring 180° clockwise until a click is
heard. If correctly located, the locking ring should not easily rotate anticlockwise.
• Select the IEC mains input cable appropriate for connection to the local supply – Matrix is supplied with UK,
USA and European style mains input leads.
• Ensure that no strain is placed on the cables connecting to this apparatus. Ensure also that such cables are
not placed where they can be stepped on, pulled or tripped over.
E E N N
Key
D D E E
F F R R
E E S S
DC Power Input
I I T T
J J P P
