Specifications

Line Capacity.................1
Max. Cable Length ........100' (30 m)
Weight ...........................18 lbs (8.2 kg)
Dimensions
CCU Length..................14" (35.6 cm)
Width ...................7.5" (19 cm)
Height ..................10.25" (26 cm)
Drum Depth ...................7.5" (19 cm)
Width ...................24" (61 cm)
Height ..................25.75" (65.4 cm)
Power Source................120V/60 Hz or 230V/50 Hz,
14.4 VDC Rechargeable
Battery (optional equipment)
Power Ratings
Monitor Pack .............14-16VDC, 15W
FlatPack Drum...........12VDC, 7W
Video Format.................EIA (CCIR Available)
NTSC (PAL Available)
Push Cable Diameter ....0.26" (6.6 mm)
Camera Depth Rating....Waterproof to 330' (100 m)
Lighting..........................24 Infrared LEDs (B&W)
24 White LEDs (Color)
Oil Filled Tube ...............USP Grade Mineral Oil
Operating Environment
Temperature..............32° F to 104° F (0°C to 40°C)
Altitude ......................Up to 6560 ft. (2000 m)
Transient
Over Voltage .............Installation Categories I
(1500V Phase to Earth)
Pollution Degree 2
Storage Temperature ....-4°F to 140°F (-20°C to 60°C)
Humidity ........................30-90% RH

Standard Equipment

• Rust Proof Drum with Camera and Cable
• Monitor Pack with B&W or Color Monitor
• In Line Transmitter
• 115V Power Supply or 100-240V Power Supply
• Interconnect Cord
• Instructional Video
• Operator's Manual
Set Up and Operation
Equipment Set Up
Misuse of the push cable will result in
CAUTION
breakage requiring factory service.
SeeSnake ® FlatPack and Color FlatPack
" to 4" (38 to 102 mm)
1 /
2
Ridge Tool Company
Place the drum so the push cable is easy to manage as
you push the camera through the line. Two to three feet
(about one meter) from the access point is usually the op-
timal location.
The Monitor Pack can be tilted to several different view-
ing angles. When a battery is installed, it can be tilted to
rest on its rear supports (Figure 8). The front handle
attached to the monitor shield can also be used as a tilt
stand. Grasp the Monitor Shield Release Lever (Figure
3), pull it toward the handle to release the Monitor Shield,
and rotate the monitor shield down (Figure 4).
TIP: In brightly lit areas, point the monitor screen away
from bright light sources to reduce glare.

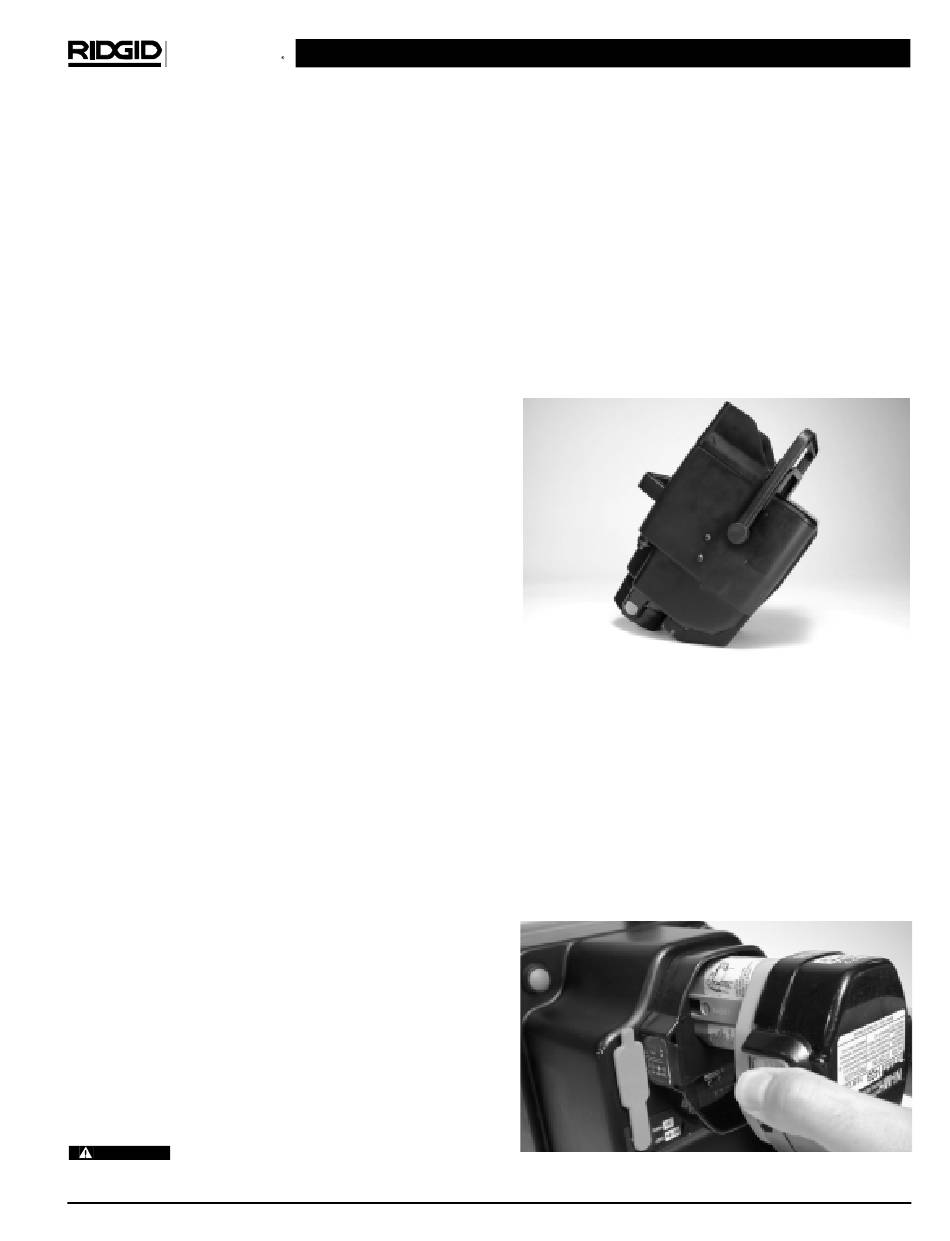

Figure 8 – Monitor Pack Tilted Using Rear Supports

Connections

Connect the Monitor Pack to an AC outlet using the
supplied AC adapter. If desired, you can install an op-
tional Makita ® 14.4V rechargeable battery into the battery
holder on the rear of the unit instead of using the AC
adapter. (Figure 9)
If the AC adapter supplied is a universal type with de-
tachable power cord, use only cord with Class II IEC
60320 connector and mains plug approved for the coun-
try where unit is used.
Figure 9 – Battery Holder
