1.2 Overview of Parts and Controls (Cont.)
7

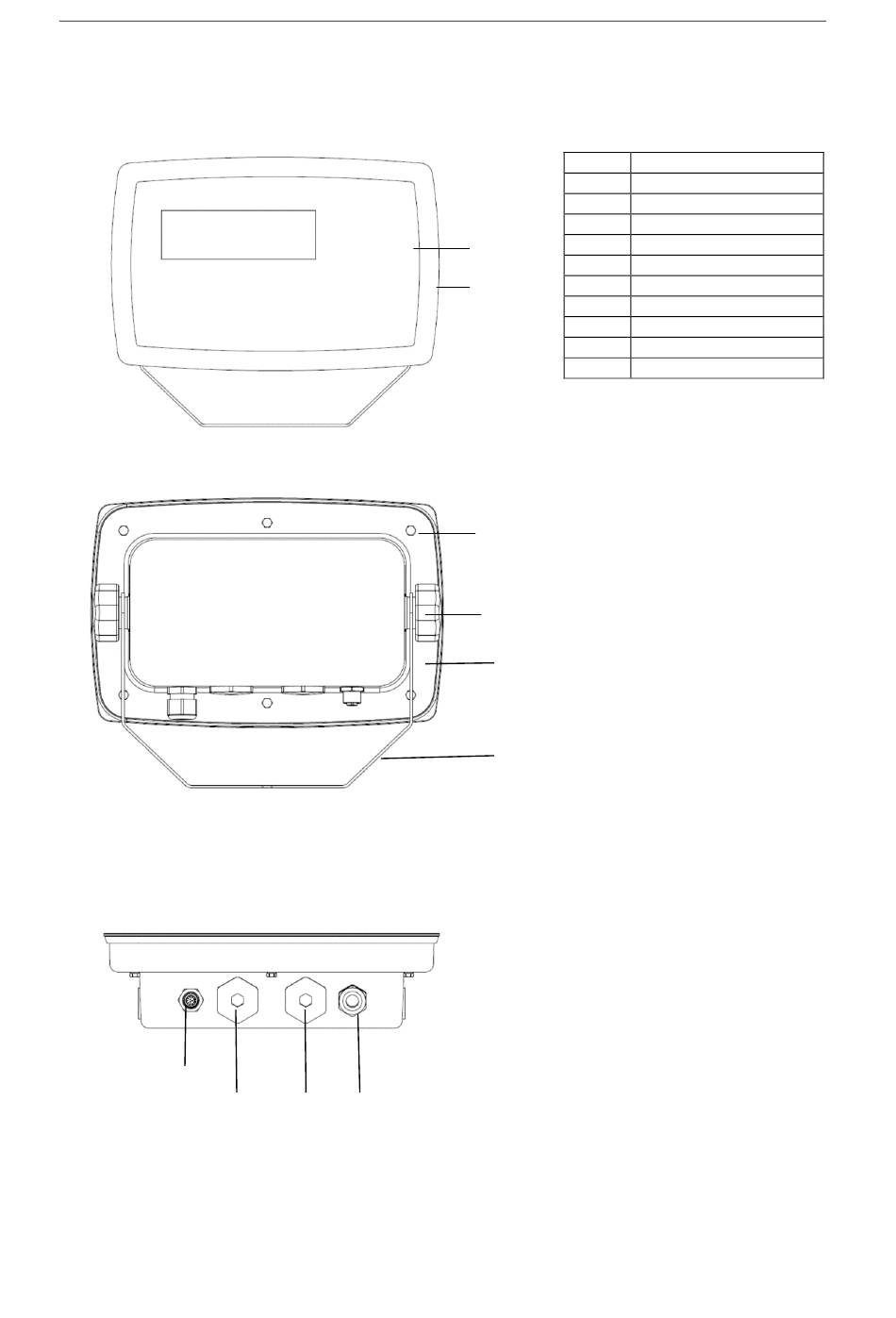

Figure 1-2
8 10
9
TD52XW Indicator
Defender 5000 Indicators
TABLE 1-2
Item Description
1 Control Panel
2 Front Housing
3 Screws (6)
4 Adjusting knobs (2)
1
5 Rear Housing
6 Mounting Bracket
2
7 Load Cell Connector
8 Strain Relief for Option
9 Power Cord
10 Strain Relief for Option
3
4
5
6
TD52XW PARTS
