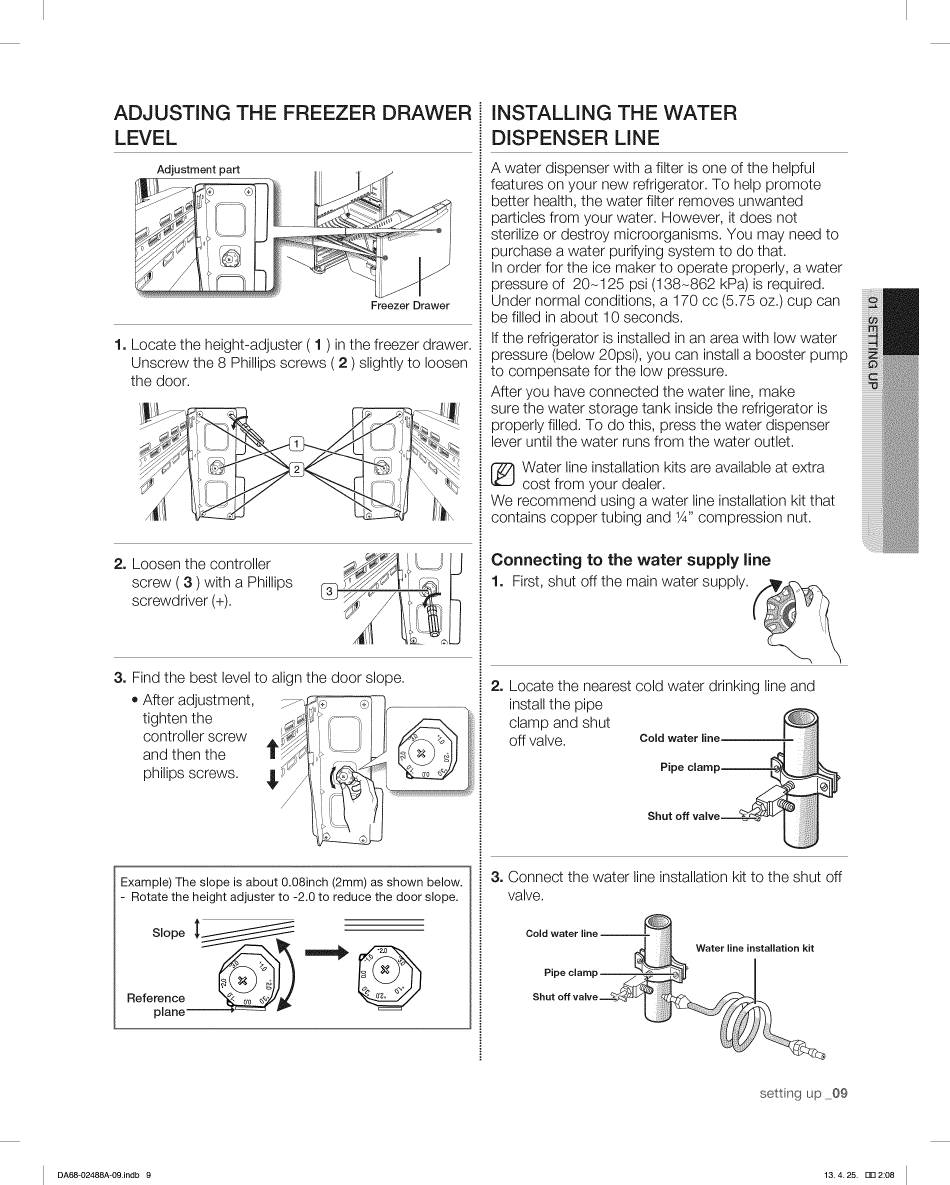

ADJUSTING THE FREEZER DRAWER
LEVEL
Adjustment part
Freezer Drawer
1. Locate the height-adjuster ( 1 ) in the freezer drawer.
Unscrew the 8 Phillips screws ( 2 ) slightly to loosen
the door.
"Lt-
2. Loosen the controller
screw ( 3 ) with a Phillips
screwdriver (+).
3. Find the best level to align the door slope.
,, After adjustment, _,_,
tighten the
controller screw
A_
and then the T_/_ t
philips screws.
Example) The slope is about 0.08inch (2mm) as shown below.
- Rotate the height adjuster to -2.0 to reduce the door slope.
s
Reference
plane--
INSTALLING THE WATER
DISPENSER LINE
A water dispenser with a filter is one of the helpful
features on your new refrigerator. To help promote
better health, the water filter removes unwanted
particles from your water. However, it does not
sterilize or destroy microorganisms. You may need to
purchase a water purifying system to do that.
In order for the ice maker to operate properly, a water
pressure of 20-125 psi (138-862 kPa) is required.
Under normal conditions, a 170 cc (5.75 oz.) cup can
be filled in about 10 seconds.
If the refrigerator is installed in an area with low water
pressure (below 20psi), you can install a booster pump
to compensate for the low pressure.
After you have connected the water line, make
sure the water storage tank inside the refrigerator is
properly filled. To do this, press the water dispenser
lever until the water runs from the water outlet.
_ ater line installation kits are available at extra
cost from your dealer.
We recommend using a water line installation kit that
contains copper tubing and 1A" compression nut.
Connecting to the water supply line
1. First, shut off the main water supply.
2. Locate the nearest cold water drinking line and
install the pipe
clamp and shut
off valve.
Cold water line
3. Connect the water line installation kit to the shut off
valve.
Cold water line
Water line installation kit
setting up 09
