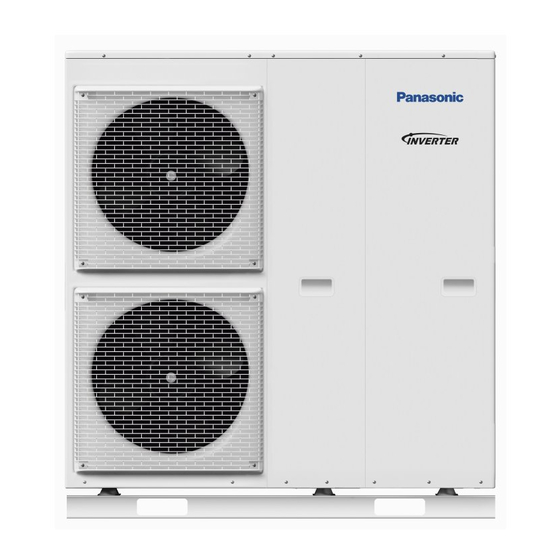

Panasonic WH-MHF12G6E5 Manual Del Usuario

Installation Manual
(MONO BLOC) AIR-TO-WATER HEATPUMP
Required tools for Installation Works
1 Philips screw driver
2 Level gauge
3 Electric drill
SAFETY PRECAUTIONS
•
Read the following "SAFETY PRECAUTIONS" carefully before installation of (Mono bloc) Air-to-Water Heatpump system (hereafter referred to as "Mono
bloc unit").
•
Electrical works and water installation works must be done by licensed electrician and licensed water system installer respectively. Be sure to use the correct
rating and main circuit for the model to be installed.
•
The caution items stated here must be followed because these important contents are related to safety. The meaning of each indication used is as below.
Incorrect installation due to ignorance or negligence of the instructions will cause harm or damage, and the seriousness is classifi ed by the following indications.
WARNING
This indication shows the possibility of causing death or serious injury.
CAUTION
This indication shows the possibility of causing injury or damage to properties only.
The items to be followed are classifi ed by the symbols:
Symbol with white background denotes item that is PROHIBITED from doing.
Symbol with dark background denotes item that must be carried out.
•
Carry out test run to confi rm that no abnormality occurs after the installation. Then, explain to user the operation, care and maintenance as stated in
instructions. Please remind the customer to keep the operating instructions for future reference.
•
If there is any doubt about the installation procedure or operation, always contact the authorized dealer for advice and information.
Do not install Mono bloc unit near handrail of veranda. When installing Mono bloc unit at veranda of high rise building, child may climb up to Mono bloc unit and
cross over the handrail and causing accident.
Do not use unspecifi ed cord, modifi ed cord, join cord or extension cord for power supply cord. Do not share the single outlet with other electrical appliances.
Poor contact, poor insulation or over current will cause electrical shock or fi re.
Do not tie up the power supply cord into a bundle by band. Abnormal temperature rise on power supply cord may happen.
Do not insert your fi ngers or other objects into the unit, high speed rotating fan may cause injury.
Do not sit or step on the unit, you may fall down accidentally.
Keep plastic bag (packaging material) away from small children, it may cause suffocation.
Do not use pipe wrench to install refrigerant pipe. It might deform the piping and cause the unit to malfunction.
Do not purchase unauthorized electrical parts for installation, service, maintenance and etc.. They might cause electrical shock or fi re.
This unit is a multi supply appliances. All circuits must be disconnected before accessing to the unit terminals.
Do not modify the wiring of Mono bloc unit for installation of other components (i.e. heater, etc). Overloaded wiring or wire connection points may cause electrical
shock or fi re.
Do not add or replace refrigerant other than specifi ed type. It may cause product damage, burst and injury etc.
For electrical work, follow the local national wiring standard, regulation and this installation instruction. An independent circuit and single outlet must be used. If
electrical circuit capacity is not enough or defect found in electrical work, it will cause electrical shock or fi re.
For water circuit installation work, follow to relevant European and national regulations (including EN61770) and local plumbing and building regulation codes.
Must engage an authorized dealer or specialist for installation. If installation is defective, it will cause water leakage, electrical shock or fi re.
F616633
4 Spanner
5 Knife
6 Measuring tape
WARNING
7 Megameter
8 Multimeter
9 Torque wrench
ENGLISH ................ 1
ESPAÑOL ............. 10
ITALIANO .............. 19
NEDERLANDS ..... 28
PORTUGUÊS ....... 37
ΕΛΛΗΝΙΚΑ ............. 46
ČESKY .................... 55
FRANÇAIS ........... 64
DEUTSCH ............ 73
TÜRKÇE ............... 82
SVENSKA ............. 91
NORSK ............... 100
SUOMI ................ 109
DANSK ............... 118
39.2 N•m (3.9 kgf•m)
58.8 N•m (5.8 kgf•m)
10 Gas leak detector
