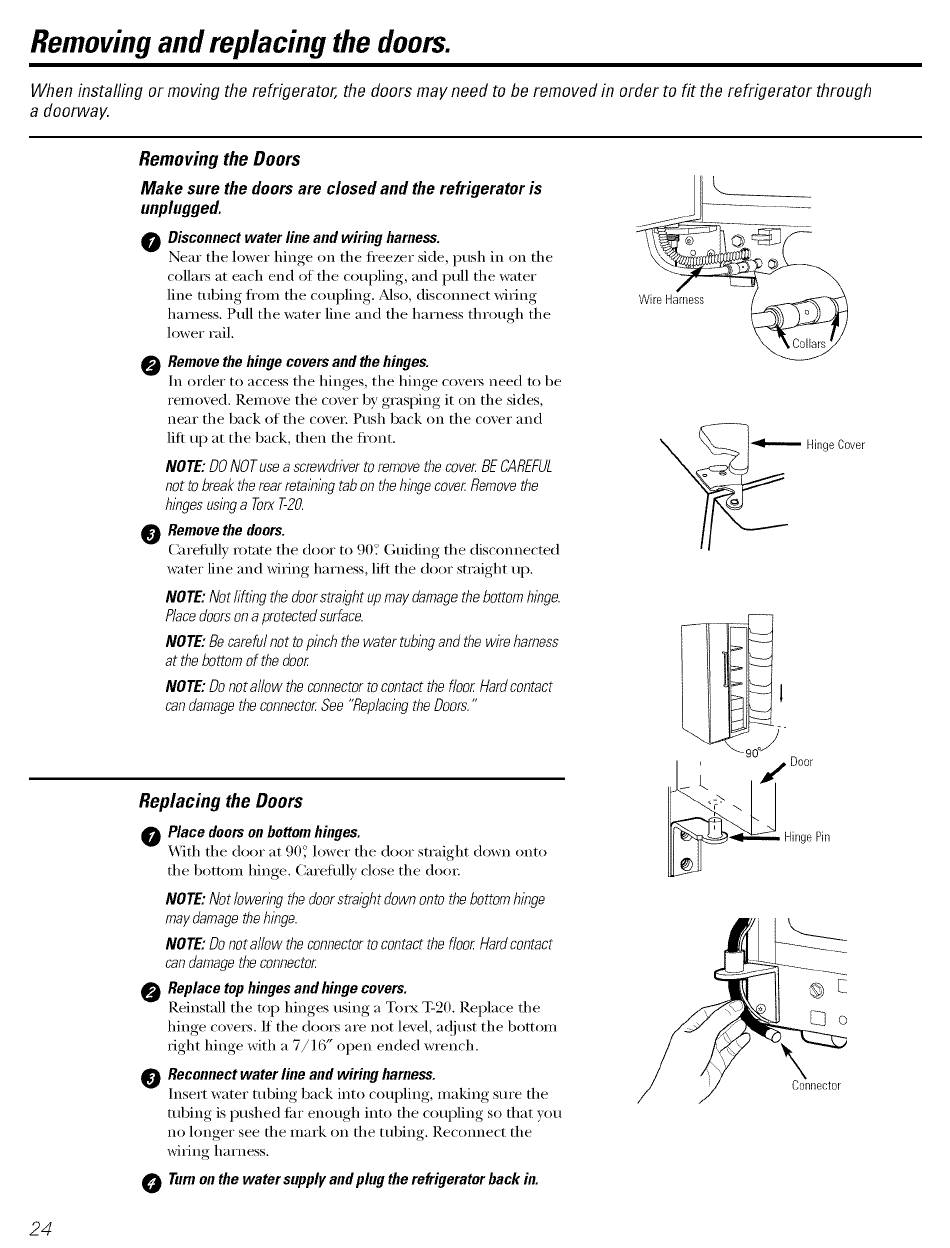

Removingand replacing the doors.
When installing or moving the refrigerator, the doors may need to be removed in order to fit the refrigerator through
a doorway.
Removing the Doors
Make sure the doors are closed and the refrigerator is
unplugged.
0 Disconnect water line and wiring harness.
Near the lower hinge on the fl'eezer side, push in on the
collm_ at each end of the coupling, and pull the water
line robing fl'om the coupling. _Mso, disconnect wi_ing
harness. Pull the water line and the harness through the
lower rail.
0 Remove the hinge covers and the hinges.
In order to access the hinges, the hinge ('o\'e_ need to be
relnoved. Remove the cover b v grasping it on the sides,
near the back of the covei: Push back on the cover and
lift up at the back, then the fl'ont.
NOTE: DO NOTuse a screwdriver to remove the cover BECAREFUL
not to break the rear retaining tab on the hinge cover Removethe
hlbges uslbg a TorxT-20.
0 Remove the doors.
(:arefhllv
rotate the door to 90? Guiding
the disconnected
water line and wi_ing harness,
lift the door straight
up.
NOTE: Not rifting the door straight up may damage the bottom hinge.
Piece doors on a protectedsurface.
/VOTE:Be careful not to pinch the water tubing and the wire harness
at the bottom of the door
/VOTE:Donot a//ow the connector to contact the floor Hardcontact
can damage the connector See "Replacingthe Doors."
Replacing the Doors
0 Place doors on bottom hinges.
X'_ith the door at 9()_' lower the door straight down onto
the bottom hinge. Careflflly close the (loo_:
NOTE: Not lowenbg the door stralght down onto the bottom hinge
may damage the hinge.
/VOTE:Donote/low the connector to contact the floor Hardcontact
can damage the connector
0 Replace top hinges and hinge covers.
Reinstall the top hinges using a Torx T-20. Replace the
hinge covei_. If the doo_ are not level,
a(!itlst
the bottom
_ight hinge with a 7/16" open ended wrench.
0 Reconnect water line and wiring harness.
Insert water robing back into coupling, making sure the
tubing is pushed tier enough into the coupling so that wm
no longer see the mark on the tubing. Reconnect the
wiring harness.
0 Turn on the water supply and plug the refrigerator back in.
\
_ Hinge Cover
, Door
Hinge Pin
Connector
