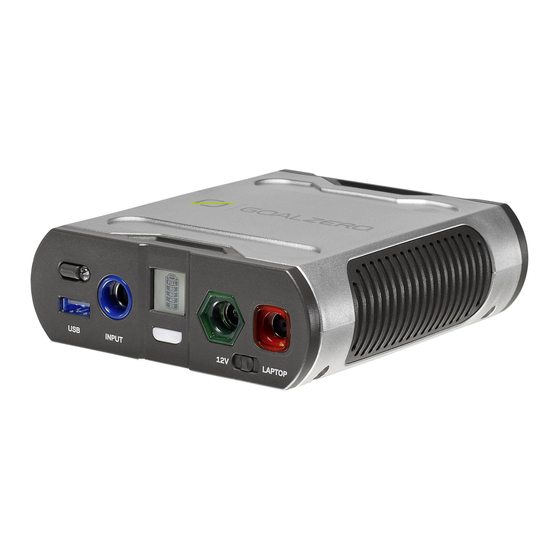

Sherpa 50

Register your product
Watch demo video
Download user manual

We proudly support Tifie Humanitarian www.tifie.org

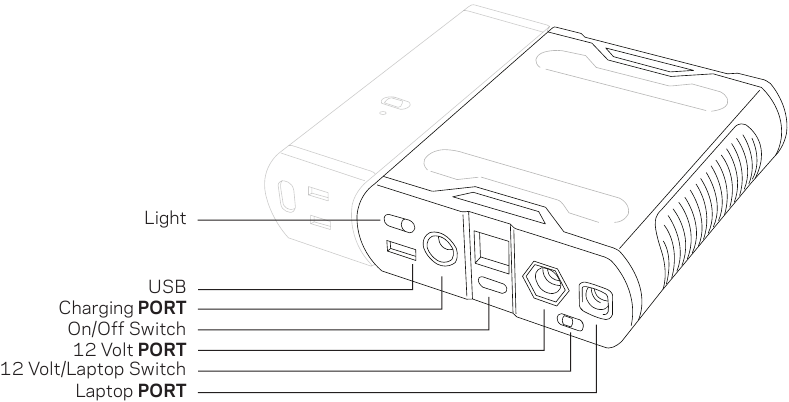

Conozca su equipo

CARGAR

From AC, 12V, or solar panels.

ENERGÍA

Plug in any AC*, 12V, or USB device.

*AC inverter sold seperately.

REABASTECER

To stay prepared keep devices plugged into AC, 12V, or solar panel.

Preguntas frecuentes

¿Cómo sé si está encendido?

A: Push the white "power button" (botón de encendido) below the LCD battery monitor and it will light up.

¿Cómo sé si tengo una carga completa?

A:The LED battery monitor displays charge level in 20% increments. If all areas are shaded and the monitor says "FULL" (LLENO), then it is charged up and ready to go.

¿Es resistente al agua?

A: No. Although the SHERPA is durable, electricity and water don't mix well. Make sure the ports are dry before using the device.

¿Puedo llevar el recargador en un avión?

A: Yes, the SHERPA is perfect for keeping your devices charged on long flights.

¿Cuánto tiempo puede el Sherpa 50 mantener su carga?

A: It can hold its charge for several months. However, to keep the battery healthy and ready to go, we recommend that you leave your SHERPA 50 plugged in between uses. If this is not possible, charge it every 3-4 months.

¿Qué tipo de tecnología de batería es?

A: Lithium-ion NMC. It has these advantages: stores more energy; smaller and lighter watt for watt; and retains its charge even after months of storage.

¿Puedo conectar varios Sherpas juntos?

A: Yes. You can chain multiple Sherpas together through the sidecar port. Contact goalzero.com for the chaining cord.

¿Por qué se apagó automáticamente?

A: The SHERPA has a built-in feature that turns the unit off after a period of inactivity. This saves power. To override this mode and keep it in "always on" (siempre encendido) mode, simply hold down the "power button" (botón de encendido) for about 10 seconds. A small "ON" (ENCENDIDO) icon will appear in the upper left side of the LCD battery monitor if you are in "always on" (siempre encendido) mode. In this case, it will only turn off if it runs out of power or you turn it off.

Note for Extreme Users:
Long Term Storage: For long-term storage (up to a year), charge the Sherpa 50 to 50% full, then remove the fuse, and store in a cool place.

Especificaciones técnicas

Usage:
Charge every 3-4 months, to maintain battery life.
For up to 1-year storage, discharge to 50%, remove fuse, shelve in cool temperature

Charging With:	Approximate Charge Times
AC wall charger	3 hours
12V car charger	3-4 hours
GOAL ZERO Nomad 13.5	6-12 hours

Inputs
Charging port (8.0mm, blue, circle)	15-25V (30W max)

Outputs
USB Port	5V, 0-1.5A (7W max), regulated
12V port (6.0mm, green, hexagon)	12V, 0-6A (75W max), regulated
Sidecar port (9mm, side)	9-13V, 0-10A (75W max), not regulated, Use with Sherpa inverter or for chaining
Laptop port (7.4mm, orange, square)	19V, 0-5A (75W max) regulated
AC Inverter (sold separately)	110VAC (75W max), modified-sine wave

Internal
Battery type	Lithium-ion (NMC)
Battery capacity	50Wh+ (2x3x3.6V, 2.6Ah cells)
Battery voltage range	9-13V
BMS	Built-in charge controller, and cell output protection
Life-span	hundreds of cycles
Fuses	10A, standard car fuse

General
Chainable	yes, with other Sherpa V2
Weight	1.1lbs
Dimensions	4.5 x 1.5 x 5 in (11.4 x 3.8 x 12.7 cm)
Warranty	12 months
Tested and Certified	FCC, CE
Operating usage temp.	32-104F (0-40C)

Referencias

Descargar el manual

Aquí puede descargar la versión PDF completa del manual. Puede contener instrucciones de seguridad adicionales, información de garantía, reglas de la FCC, etc.

Descargar Manual de Goal Zero Sherpa 50
