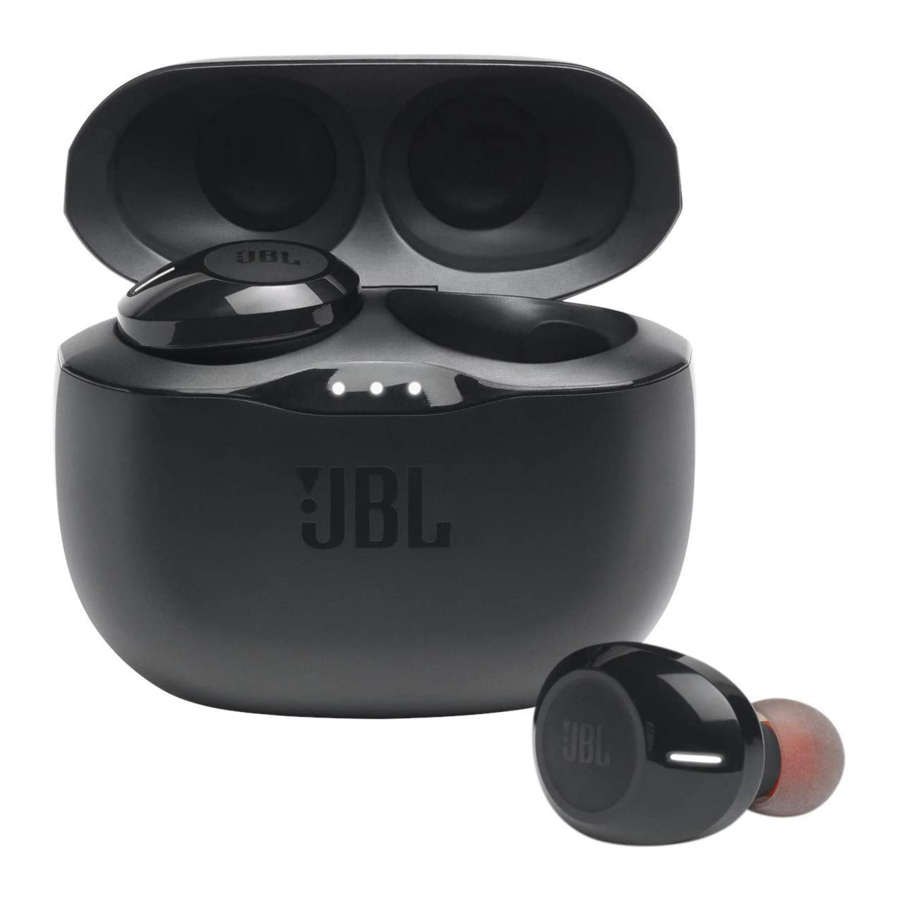

Manual de los auriculares JBL TUNE 125TWS

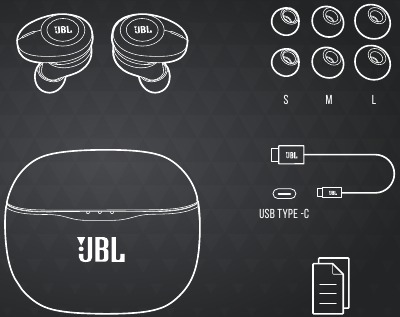

¿QUÉ HAY EN LA CAJA?

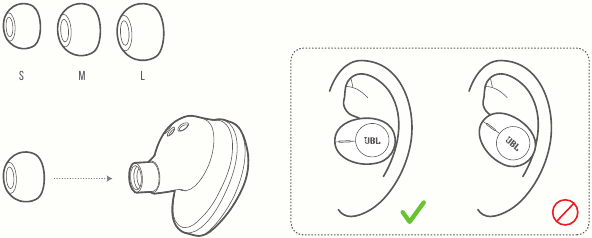

CÓMO LLEVARLOS PUESTOS

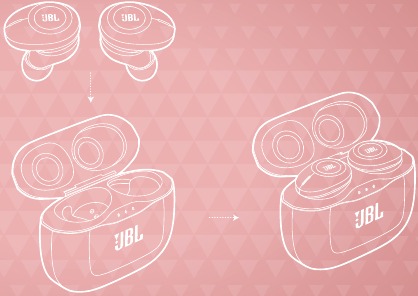

PRIMER USO

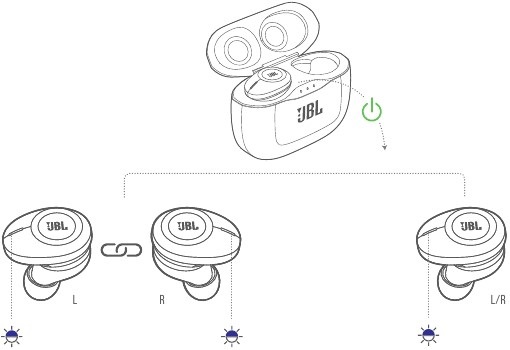

ENCENDIDO Y CONEXIÓN

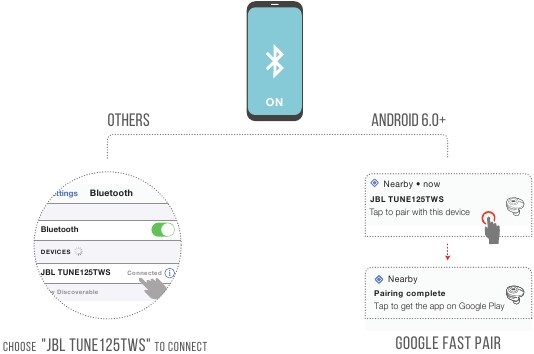

EMPAREJAMIENTO

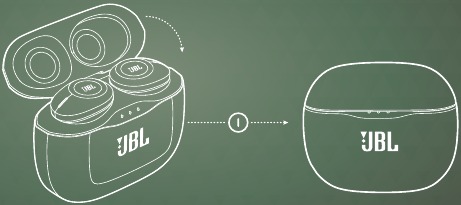

APAGADO
CONTROLES MANUALES
POWER ON & CONNECT TO DEVICE (ENCENDER Y CONECTAR AL DISPOSITIVO)
RECONNECTING LEFT & RIGHT (RECONEXIÓN IZQUIERDO Y DERECHO)
POWER ON (ENCENDER)
POWER OFF (APAGAR)

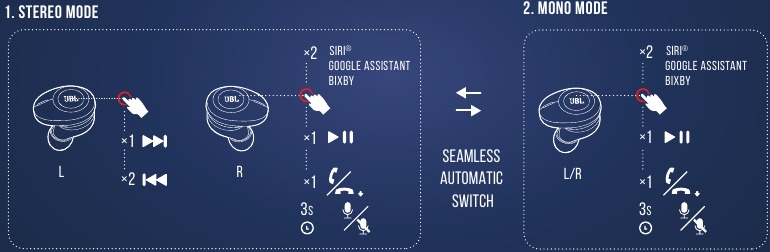

COMANDO DE BOTONES

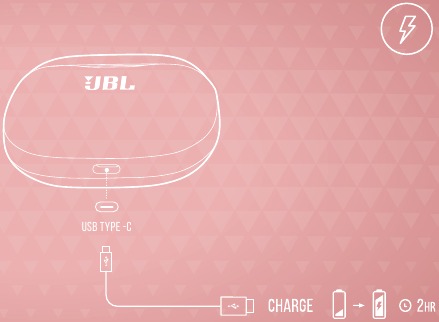

CARGA

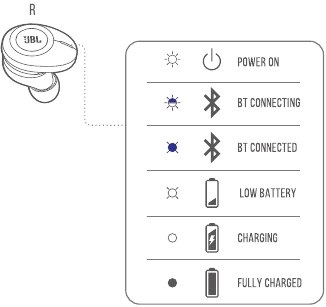

COMPORTAMIENTO DE LOS LED
ESPECIFICACIONES TÉCNICAS
Driver size: 5.8 mm Dynamic driver
Frequency response: 20 Hz – 20 kHz
Sensitivity: 96 dB SPL @ 1 kHz 1 mW
Maximum SPL: 96 dB
Microphone sensitivity: 38 dBV / Pa @ 1 kHz
Impedance: 14 ohm
Bluetooth transmitted power: < 12 dBm
Bluetooth transmitted modulation: GFSK, Π/4 DQPSK, 8DPSK
Bluetooth frequency: 2.402 GHz - 2.480 GHz
Bluetooth profile version: A2DP 1.3, AVRCP 1.5, HFP V1.7
Bluetooth version: 5.0
Headset battery type: Lithium-ion battery (85 mAh / 3.7 V DC)
Charging case battery type: Lithium-ion battery (850 mAh / 3.7 V DC)
Power supply: 5 V ⎓ 1.0 A
Charging time (headset & charging case): < 2 hrs from empty
Music playtime with BT on: 8 hrs
Weight: 73 g
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
IC RF Exposure Information and Statement (Información y declaración sobre la exposición a radiofrecuencia de IC)
The SAR limit of Canada (C) is 1.6 W/kg averaged over one gram of tissue. Device types: (IC: 6132A-TUNE125TWS) has also been tested against this SAR limit According to this standard, the highest SAR value reported during product certification for head use is 0.23171W / kg. The device was tested for typical bodily operations where the product was kept 0 mm from the head. To maintain compliance with IC RF exposure requirements, use accessories that maintain a separation distance of 0mm between the user›s head and the back of the headset. The use of belt clips, holsters and similar accessories shall not contain metal parts in its assembly. Use of accessories that do not meet these requirements may not comply with IC RF exposure requirements and should be avoided.
Head operation (Funcionamiento en la cabeza)
The device was subjected to a typical head manipulation test. In order to comply with RF exposure requirements, a minimum separation distance of 0 cm must be maintained between the user›s ear and the product (including the antenna). Head exposure that do not meet these requirements may not meet RF exposure requirements and should be avoided. Use only the supplied or approved antenna.
IC: 6132A-TUNE125TWS
Descargar el manual
Aquí puede descargar la versión PDF completa del manual. Puede contener instrucciones de seguridad adicionales, información de garantía, reglas de la FCC, etc.
Descargar Manual de los auriculares JBL TUNE 125TWS
