Uponor Smatrix Wave Guía Rápida página 11

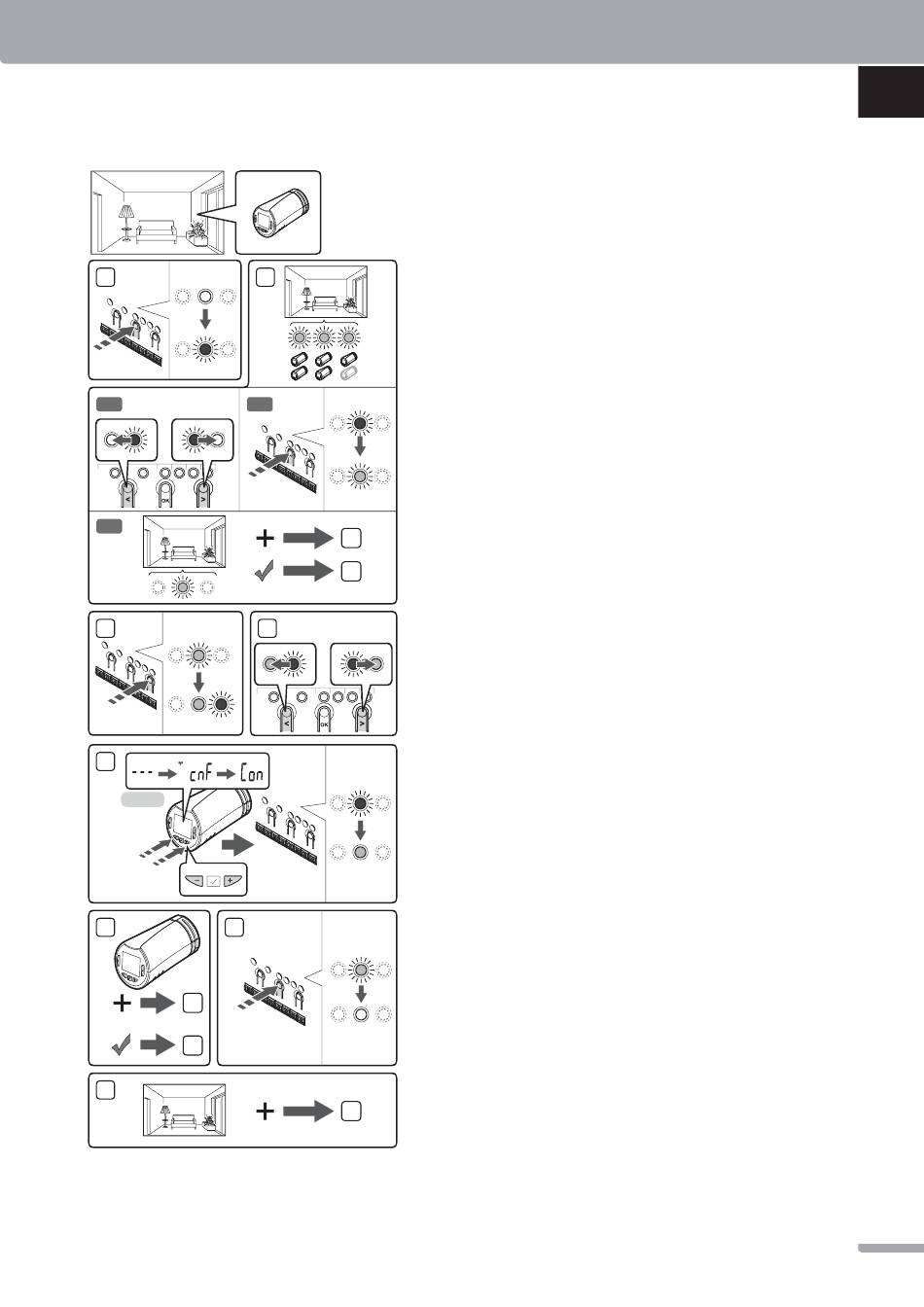

Register thermostatic heads to controller
in rooms without a thermostat
1 2
3 s
2.1 2.2
2.3
3 4
3 s
5
T-162
5 s
6 7
4
3 s
7
8
U P O N O R S M AT R I X WAV E · Q U I C K G U I D E
QUICK GUIDE
2
3
1
To register thermostatic heads in the controller:
1. Press and hold the OK button on the controller until
the LED for the fi rst unregistered channel fl ashes
red. If all channels are registered to thermostats, the
LED fl ashes red and green.
2. Select a thermostat channel.
2.1 Use buttons < or > to move the pointer (LED
fl ashes red) to the fi rst empty channel needed
for the room (no LED). The LED fl ashed red.
2.2 Press the OK button to select the channel for
registration. The LED for the selected channel
starts fl ashing green.
2.3 Repeat steps 2.1 and 2.2 until a suffi cient number
of channels for the room are created.
3. Press and hold the > button on the controller until
the selected channels light up green and the next
in line starts fl ashing red. A channel without a
thermostat has been created.
4. Use buttons < or > to move the pointer (LED
fl ashes red) to the fi rst channel of the room (green
LED). The LED fl ashed red and green.
If the fi rst channel is full, move the pointer to the
next channel in line.
5. THERMOSTATIC HEAD T-162
5.1 Press and hold both - and + buttons on the
thermostatic head until the text CnF (confi gure)
and a communication icon is displayed.
The text Con is shown in the display, and the
selected channel LED in the controller turns
fi xed green, when the registration is complete.
Note! If the text --- is shown in the
thermostatic head display the registration
failed. Repeat steps 2.1 through 2.2 and try
the next channel in line, in case two other
thermostatic heads already has been registered
to the current one.
6. Press one of the buttons on the controller and
repeat steps 4 through 5 until all thermostatic heads
are registered.
7. Press and hold the OK button on the controller
until the green LEDs turn off to end registration and
return to run mode.
8. Repeat steps 1 through 7 until the thermostatic
heads in all rooms are registered.
